  11. Filter/Regulator, 11.93 In. H, 3.15 In. W

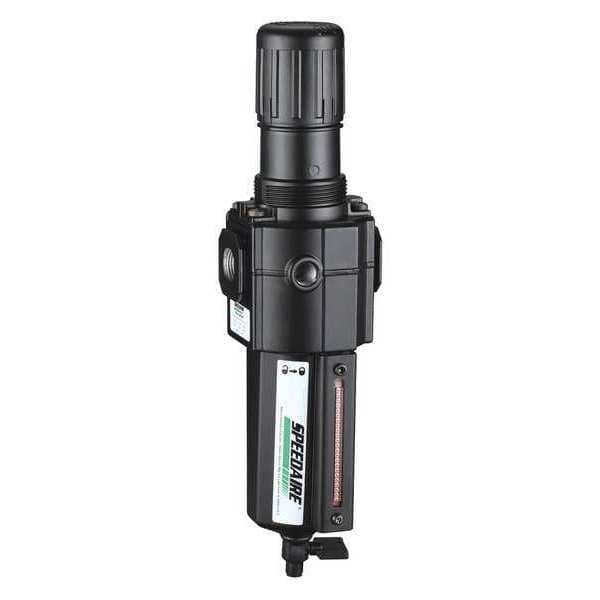

Speedaire Filter/Regulator, 11.93 In. H, 3.15 In. W 4ZK96 - main

Filter/Regulator, 11.93 In. H, 3.15 In. W

  • Mfr # 4ZK96

  • Zoro # G0470486

product price: $115.99
/ea
Free Shipping & Returns

Key Features

Item - Filter-Regulators
Filter-Regulator
Connection Size - Air Treatment
1/2 in NPT
Filter Rating - Air Treatment
40 micron
Max. Incoming Pressure - Air Treatment
250 psi
Max. Flow - Air Treatment
140 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4ZK96
Zoro #
G0470486
UPC #
190735631041
Country of Origin
China

Dimensions

Connection Size - Air Treatment
1/2 in NPT
Size - Air Treatment
Standard
Bowl Size - Air Treatment
7.0 oz
Pipe Size
1/2" NPT
Overall Width
3 1/8 in
Gauge Port Size
1/4 in PTF
Overall Height
11.93 in
Size
Standard
Bowl Size
7.0 oz.
Air Inlet Size
1/2 in
Air Outlet Size
1/2 in
Pressure Gauge Port Size
1/4 in

Details

Item - Filter-Regulators
Filter-Regulator
Filter Rating - Air Treatment
40 micron
Max. Incoming Pressure - Air Treatment
250 psi
Max. Flow - Air Treatment
140 cfm
Adjustment Range - Air Treatment
5 to 150 psi
Bowl Material - Air Treatment
Metal
Item
Filter-Regulator
Filter Rating
40 micron
Max. Pressure
250 psi
Adjustment Range
5 to 150 psi
Bowl Material
Metal
Adjustment Knob
Non Rising
Max. Temp.
175 Degrees F
Max. Flow
140 cfm
For Removal Of
Particles, Water
Drain Type
Manual
Includes
Metal Bowl
Weight
1.15 kg
Filter Bowl Guard Included
Yes
Body Material
Aluminum
Regulator Type
Relieving
Filter Efficiency
95 %
Minimum Regulated Pressure
5 psi
Number of Air Inlets
1
Minimum Operating Pressure
0.85 MPa
Series
Standard Duty
Adjustment Location
Top
Maximum Operating Temperature
175 Degrees F
Sight Gauge Included
No
Minimum Operating Temperature
5 Degrees C
Pressure Gauge Included
No
Filter Bowl Material
Metal with Sight Gauge
Air Outlet Gender
Female
For Substance Type
Air
Filter Bowl Capacity
7 oz
Pressure Gauge Port Type
PTF
Air Outlet Type
NPT
Filter Element Material
PE
For Fluid Type
Compressed Air
Maximum Operating Pressure
250 psi
Adjustment Mechanism
Knob
Air Flow Direction
Left to Right
Filter Bowl Guard Material
Aluminum
Air Inlet Gender
Female
Filter Type
Particulate
Differential Pressure Indicator Included
No
Drain Part Compatibility
114X34
Maximum Flow Rate
140 cfm
Maximum Regulated Pressure
150 psi
Pressure Gauge Port Gender
Female
Adjustment Mechanism Material
Reinforced Nylon
Seal Material
Rubber
Air Inlet Type
NPT
Modular Connection
No Modular Connection
Duty Rating
Intermediate Duty
Number of Air Outlets
1
Drain Included
Yes
Type
Standard

Description

Filter-Regulator, Filter Bowl Material Metal with Sight Gauge, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 140 cfm, Filter Rating 40 micron, Filter Type Particulate, Maximum Operating Pressure 250 psi, Drain Type Manual, Pressure Gauge Included No, Body Material Aluminum, Overall Width 3 1/8 in, Series Standard Duty, Adjustment Location Top, Adjustment Mechanism Knob, Adjustment Mechanism Material Reinforced Nylon, Air Flow Direction Left to Right, Air Inlet Gender Female

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
