Shop SPEEDAIRE

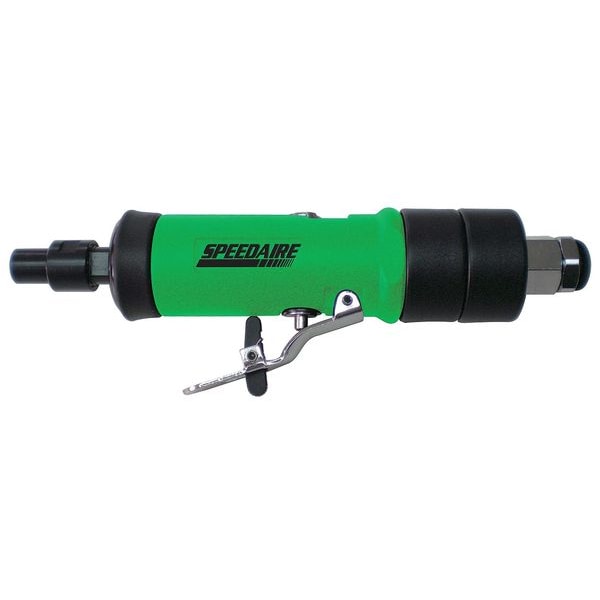

Straight Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Medium Duty, 25,000 RPM, 0.35 hp

  • Mfr # 12V736

  • Zoro # G8477524

product price:
$
176.99
/ea
Free Shipping & Returns

Key Features

Overall Length
7 in
Air Inlet
1/4 in NPT Female
Horsepower
0.4 hp
Free Speed
25,000 RPM
Max. Speed
26,000 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12V736
Zoro #
G8477524
UPC #
190735601358
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
7 in
Min. Hose Size
3/8 in
Collet Size
1/4 in
Handle Length
93 mm
Air Inlet Connection Size
1/4 in
Maximum Burr Diameter
1/4 in
Maximum Mounted Point Diameter
1/4 in
Maximum Brushed Wheel Diameter
1/4 in
Brushed Wheel Diameter - Maximum
1/4 in
Mounted Point Diameter - Maximum
1/4 in
Hose Size - Minimum
3/8 in
Burr Diameter - Maximum
1/4 in
Wire Rope Length
7 in
Length
7 in

Details

Item
Die Grinder
Air Inlet
1/4 in NPT Female
Horsepower
0.4 hp
Free Speed
25,000 RPM
Max. Speed
26,000 RPM
Grinder Type
Straight
Includes
1/4 in Erickson Collet
Variable Speed
Yes
Throttle
Safety Lever
Average CFM @ 15 Second Run Time
1.6
Bearing Type
Ball
Grinder Orientation
Straight
Handle Material
Composite
Duty
Medium Duty
Collet
1/4 in
CFM @ Full Load
11.0
Tool Weight
1.1 lb
Features
Low Profile Throttle Lever for Increased Comfort
Application
Grinding
Dust Sealed Switch
Yes
Kit Contents
(1) Bare Tool
Power Source
Air Powered
Vibration Level
2.5 m/sq sec
Speed Ranges
0 to 25,000 RPM
Anti-Kickback Clutch Type
None
Air Consumption
3 cfm
Air Pressure
90 psi
Air Inlet Gender
Female
Accessory Free Tool Change
Yes
Lock-On Switch
No
Air Inlet Type
NPT
Switch Location
Rear
Lock-Off Switch
Yes
Switch Type
Safety Lever
Material Application
Steel
Anti-Vibration Technology
No
Safety Stop Mechanisms
Mechanical Brake
Number of Speed Settings
Continuous
Tool Style
Straight
Tether Style
Theter Included
Exhaust Location
Rear
Case Included
Yes
Minimum Speed
24,000 RPM
Grip Style
Barrel Grip
Anti-Restart Technology
No
Dust Management
Rear Exhaust, Dust Sealed Switch
Speed - Maximum
26,000 RPM
Safety Features
Lock-Off Switch
Robot Mounting Components Included
Tool Only
Speed - Minimum
24,000 RPM
Power Source - TS Only
Air Powered
Power Source - old
Air Powered

Description

Die Grinder, Duty Medium Duty, Horsepower 0.4 hp, Collet Size 1/4 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 26,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Straight, Kit Contents (1) Bare Tool, Includes 1/4 in Erickson Collet, Case Included Yes, Grip Style Barrel Grip, Material Application Steel, Safety Stop Mechanisms Mechanical Brake, Anti-Restart Technology No, Anti-Kickback Clutch Type None
