Technical Specifications
| Zoro #: G1151787 Mfr #: 4KP88 | |
| NPT (In.) O: 1 | NPT (In.) N: 3/8 |
| Baseplate for NEMA Frame: Air receiver only, not equipped with baseplate. | Shell (In.): 54.3 |
| Dimension H (In.): 3.0 | Dimension F (In.): 27.0 |
| Item: Air Tank | Dimension E (In.): 0.6 |
| Working Pressure (PSI): 200 | Standards: ASME U and UM Code |
| Material: steel | NPT (In.) P: 1 |
| Tank Type: Vertical | Type: Stationary |
| Dimension L (In.): 3.0 | Dimension D (In.): 2.5 |
| NPT (In.) S: 1 | Max. Recommended Pump Sz. (HP): Not Rated |
| Capacity (Gal.): 120 | Dia. (In.): 24 |
| Height (In.): 70.5 | Country of Origin (subject to change): United States |
Product Description

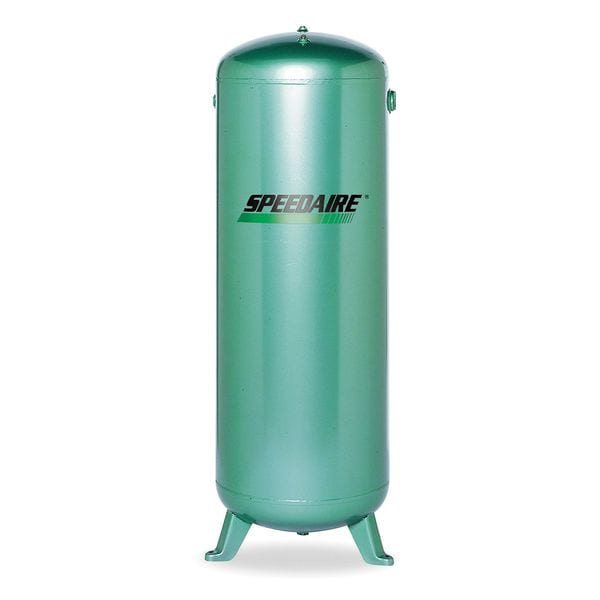

Vertical Air Tank, Capacity 120 Gallons, Working Pressure 200 PSI, Tank Type Vertical, Diameter 24 Inches, NPT N 3/8 Inch, NPT O 1 Inch, NPT P 1 Inch, NPT S 1 Inch, Shell 54.3 Inches, Height 70.5 Inches, Dimension D 2.5 Inches, Dimension E 0.6 Inch, Dimension F 27 Inches, Dimension H 3 Inches, Dimension L 3 Inches, Air Receiver Only, Not Equipped with Baseplate
