  13. 120VAC Mechanically Held Lighting Contactor 8P 30A

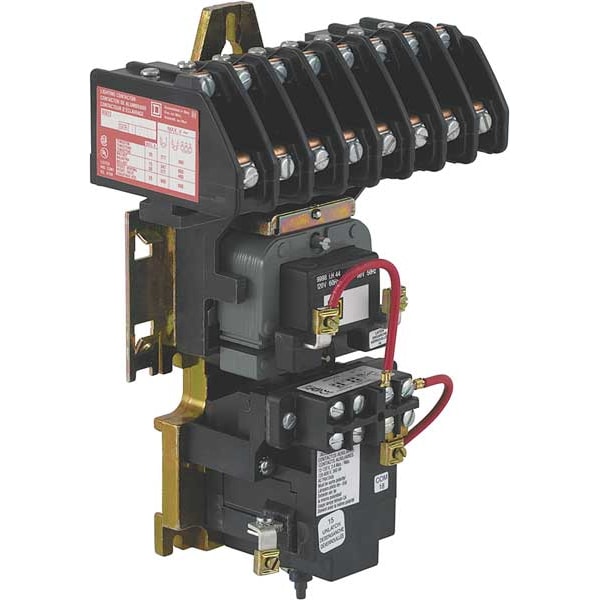

Square D 120VAC Mechanically Held Lighting Contactor 8P 30A 8903LXO80V02 - main

120VAC Mechanically Held Lighting Contactor 8P 30A

  • Mfr # 8903LXO80V02

  • Zoro # G2512054

product price: $1,072.99
/ea
Free Shipping & Returns

Key Features

Contactor Type
Mechanically Held
Number of Poles
8
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
Height
8.81 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8903LXO80V02
Zoro #
G2512054
UPC #
785901057406
Country of Origin
Mexico

Dimensions

Height
8.81 in
Width
5.63 in
Depth
3.25 in
Overall Width
5.63 in
Overall Depth
3.27 in
Overall Height
8.82 in
Frame Size
L

Details

Item
Mechanically Held Lighting Contactor
Contactor Type
Mechanically Held
Number of Poles
8
Coil Volts
120V AC
Enclosure NEMA Rating
No Enclosure
Full Load Amps
30 A
Hz
50/60
Standards
CSA, REACH, RoHS, UL Listed
Features
Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Inrush VA
180-180 VA 60 Hz; 170-170 VA 50 Hz; 25-25 VA 50/60 Hz
Electrical Connections
Screw-clamp terminals
Current Rating
20-20 A tungsten; 30-30 A fluorescent
Control Type
No control units
Indicator
No
Control Circuit
Separate control circuit
Series
8903 Series Type LX
Phase
Three
Number of Normally Open Main Contacts
8
LED Lighting Current Rating
16 A
Full Load Current - Inductive
30 A
Status Indicator
No Indicator
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
30 A
Contactor Style
Mechanically Held Lighting Contactor
Tungsten Lighting Current Rating
20 A
Frequency
50/60 Hz
Coil Voltage
110/120V AC
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp Terminals
Fluorescent Lighting Current Rating
30 A
Maximum Voltage Rating
600V AC

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 16 A, Coil Voltage 110/120V AC, Series 8903 Series Type LX, Number of Poles 8, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size L, Full Load Current - Resistive 30 A, Full Load Current - Inductive 30 A, Maximum Voltage Rating 600V AC, Phase Three, Overall Height 8.82 in, Overall Width 5.63 in

Restrictions

Hazardous material
