  13. 120VAC Non-Reversing Magnetic Contactor 3P 270A NEMA 5

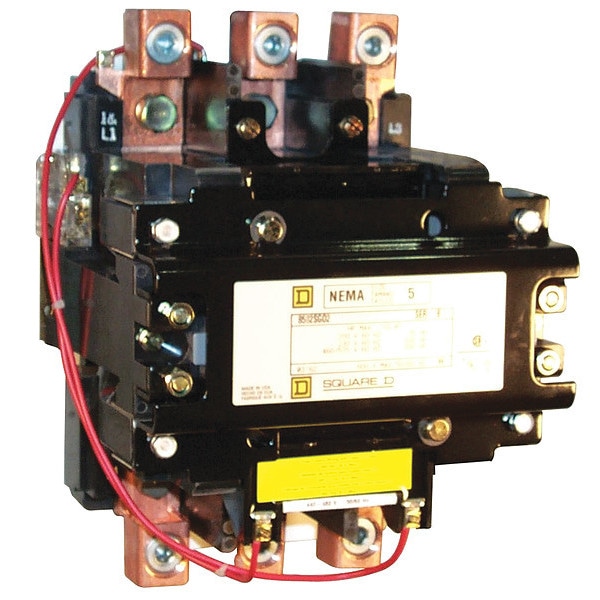

Square D 120VAC Non-Reversing Magnetic Contactor 3P 270A NEMA 5 8502SGO2V02S - main

120VAC Non-Reversing Magnetic Contactor 3P 270A NEMA 5

  • Mfr # 8502SGO2V02S

  • Zoro # G1113716

product price: $6,802.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
270 A
Action
Non-Reversing
Number of Poles
3
NEMA Contactor Size
5
Reversing
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8502SGO2V02S
Zoro #
G1113716
UPC #
785901851127
Country of Origin
Mexico

Dimensions

NEMA Contactor Size
5
Height
12.31 in
Width
8.66 in
Depth
8.75 in
NEMA Size
5
Overall Height
12.31 in
Overall Depth
8.75 in
Overall Width
8.67 in

Details

Item
Magnetic Contactor
Full Load Amps
270 A
Action
Non-Reversing
Number of Poles
3
Coil Volts
120V AC
Reversing
No
HP @ 3 Phase - 208V
75 hp
HP @ 3 Phase - 575V
200 hp
HP @ 3 Phase - 240V
100 hp
HP @ 3 Phase - 480V
200 hp
Enclosure NEMA Rating
No Enclosure
Hz
50/60
Frame / Series / Class / Code
Class 8502
Standards
CSA, UL E78351 CCN NLDX
Series
8502
Auxiliary Contact Form
Auxiliary Contacts Not Included
Poles Description
3P
[Uc] Control Circuit Voltage
120 V AC 60 Hz || 110 V AC 50 Hz
Local Signalling
no indicator
Phase
Three
Contactor Application
non-reversing
Nema Degree Of Protection
not rated (open device)
[Ue] Rated Operational Voltage
600 V AC
Line Rated Current
270 A
Product Or Component Type
contactor
Control Type
no control units
Product Certifications
UL listed file E78351 CCN NLDX || CSA
Product Compatibility
circuit-breaker 400 A maximum, SCCR: 100 kA at 480 V AC || fuse J 400 A maximum, SCCR: 100 kA at 600 V AC || fuse T 400 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 400 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 400 A maximum, SCCR: 100 kA at 600 V AC
Rated Power In Hp
75 HP 200 V AC || 100 HP 230 V AC || 200 HP 460 V AC || 200 HP 575 V AC
Control Circuit
separate control circuit
Auxiliary Contact Composition
without
Electrical Connection
screw clamp terminals
Horsepower @ Three Phase - 240V AC
100 hp
Horsepower @ Three Phase - 480V AC
200 hp
Number of Auxillary Contacts
0
Horsepower @ Three Phase - 208V AC
75 hp
Maximum Voltage Rating
600V AC
Full Load Current - Inductive
270 A
Reversing Capability
Non-Reversing
Embedded Surge Suppressor
No
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Contactor Style
NEMA
Coil Voltage
120V AC
Includes Auxiliary Contacts
No
Terminal Connection Type
Screw Clamp Terminals
Horsepower @ Three Phase - 600V AC
200 hp
Horsepower @ Single Phase - 240V AC
100 hp

Description

NEMA Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size 5, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 270 A, Reversing Capability Non-Reversing, Overall Height 12.31 in, Overall Width 8.67 in, Terminal Connection Type Screw Clamp Terminals, Series 8502, Number of Auxillary Contacts 0, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 100 hp, Horsepower @ Three Phase - 480V AC 200 hp
