- Item
- Switch
- Standards
- IEC 60947-3
- Electrical Durability
- 30000 cycles AC-21 || 30000 cycles DC-1 to 5
- Product Or Component Type

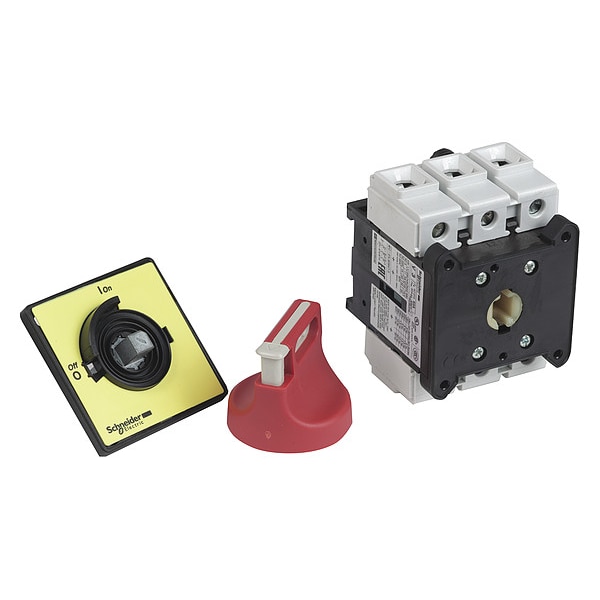

- emergency stop switch disconnector
- Marking
- 0 - 1
- Breaking Capacity
- 500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)
- Fire Resistance
- 960°C IEC 60695-2-1
- Intermittent Duty Class
- 30
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP65
- [Ithe] Conventional Enclosed Thermal Current
- 50 A
- Connections - Terminals
- power circuit screw clamp terminals 25-25 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - with cable end
- Handle Front Plate Colour
- yellow
- Mechanical Durability
- 30000 cycles
- Performance Level
- high performance
- Ambient Air Temperature For Operation
- -20-50°C
- Rotary Handle Mounting Style
- direct
- Mounting Support
- handle door || switch door
- [Ie] Rated Operational Current
- 41.5 A AC-23 Ue: 400 V
- Making Capacity
- 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
- [Icw] Rated Short-Time Withstand Current
- 756 A 400 V 1 s
- Device Short Name
- VCF
- Compatibility Code
- main switch disconnector
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Rated Operational Power In W
- 11 kW 230 to 240 V AC-3) || 22 kW 500 V AC-3) || 22 kW 690 V AC-23A) || 30 kW 500 V AC-23A) || 18.5 kW 400 to 415 V AC-3) || 18.5 kW 690 V AC-3) || 15 kW 230 to 240 V AC-23A) || 22 kW 400 to 415 V AC-23A)
- Control Type
- rotary handle
- Network Type
- DC || AC
- Protective Treatment
- TC
- Contacts Type And Composition
- 3 NO
- Suitability For Isolation
- yes
- Fixing Mode
- by 4 screws handle
- Product Certifications
- GL || CCC || CSA || UL || UKCA
- [Ith] Conventional Free Air Thermal Current
- 63 A
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- Product Name
- TeSys VARIO
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Mechanical Robustness
- vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Device Composition
- switch || handle
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Handle Colour
- red
- Poles Description
- 3P
- Range
- TeSys
- Iec Rated Operational Power in W
- 11 kW 230 to 240 V AC-3); 22 kW 500 V AC-3); 22 kW 690 V AC-23A); 30 kW 500 V AC-23A); 18.5 kW 400 to 415 V AC-3); 18.5 kW 690 V AC-3); 15 kW 230 to 240 V AC-23A); 22 kW 400 to 415 V AC-23A)
- Degree Of Protection
- IP20 conforming to IEC 60529; IP65
- IEC Terminal Connection
- Power circuit screw clamp terminals 0.04 in² (25 mm²) solid; Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - with cable end
- Rated Conditional Short Circuit Current
- 10 kA 400 V 63 A aM; 10 kA 400 V 63 A gG
