  13. Contactor, Type L, multipole lighting, mechanically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, NEMA 1

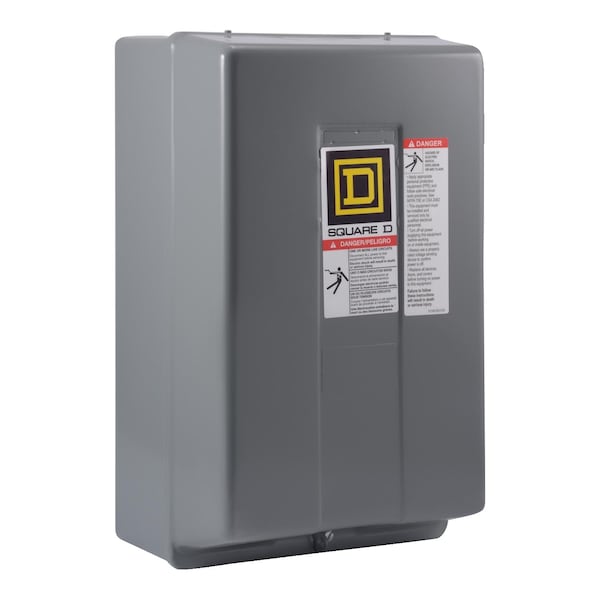

Square D Contactor, Type L, multipole lighting, mechanically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, NEMA 1 8903LXG60V04 - main

Contactor, Type L, multipole lighting, mechanically held, 30A, 6 pole, 600V, 277VAC 60Hz coil, NEMA 1

  • Mfr # 8903LXG60V04

  • Zoro # G0848261

product price: $1,085.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
6
Coil Volts
600VAC
Enclosure NEMA Rating
NEMA 1
Full Load Amps
30
Height
12.69 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8903LXG60V04
Zoro #
G0848261
UPC #
785901057390
Country of Origin
Mexico

Dimensions

Height
12.69 in
Width
7.81 in
Depth
6.03 in

Details

Item
Lighting Contactor 600Vac 30A Lx
Number of Poles
6
Coil Volts
600VAC
Enclosure NEMA Rating
NEMA 1
Full Load Amps
30
Hz
60 Hz
Standards
UL Listed; CSA
Inrush VA
150-150 VA 60 Hz; 25-25 VA 50/60 Hz
Indicator
No
Control Type
No control units
Current Rating
20-20 A tungsten; 30-30 A fluorescent
Features
Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Control Circuit
Separate control circuit
Electrical Connections
Screw-clamp terminals
Product or Component Type
Mechanically Held Lighting Contactor
Range of Product
8903LX
Line Rated Current
20-20 A tungsten, 30-30 A fluorescent
Poles Description
6P 6 NO
Inrush Power In Va
150-150 VA 60 Hz, 25-25 VA 50/60 Hz
Nema Degree of Protection
NEMA 1 painted sheet steel surface
[Uc] Control Circuit Voltage
277 V AC 60 Hz
Pvc Free
Yes
Local Signalling
no indicator

Description

Lighting Contactor 600Vac 30A Lx, Height 12.69 in, Width 7.81 in, Depth 6.03 in
