  11. Control Transformer, 250 VA, Not Rated, 120V AC, 208/240/480V AC

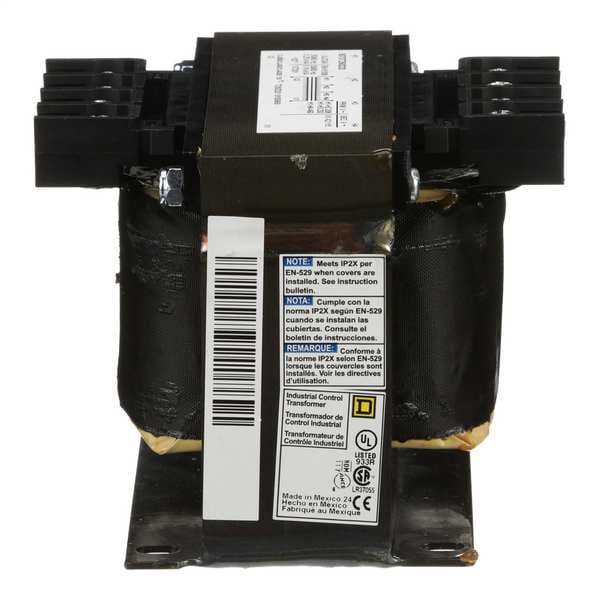

Square D Control Transformer, 250 VA, Not Rated, 120V AC, 208/240/480V AC 9070T250D20 - main

CAD Viewer & Download Files

Control Transformer, 250 VA, Not Rated, 120V AC, 208/240/480V AC

  • Mfr # 9070T250D20

  • Zoro # G2198621

CAD Available
product price: $271.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
208/240/480V AC
Output Voltage
120V AC
Power Rating
250 VA
Phase
1
Mounting - Transformer
Foot
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T250D20
Zoro #
G2198621
UPC #
785901905127
Country of Origin
Mexico

Dimensions

Overall Height
4.43 in
Overall Width
5.09 in
Overall Depth
4 1/2 in
Manufacturers Warranty Length
10 yr

Details

CAD Available
Yes
Item
Control Transformer
Input Voltage - Transformer
208/240/480V AC
Output Voltage
120V AC
Power Rating
250 VA
Phase
1
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Protective Device
None
Enclosure Style - Transformer
Open
Enclosure Finish
Epoxy Resin Varnish
Fused
No
Green Environmental Attribute
Mercury Free; Pvc Free
Secondary Connection
Screw clamp terminals
Insulation Max. Temp.
130 °C
Winding Material - Transformer
Copper
Material
Copper: winding
Primary Connection
Screw clamp terminals
Enclosure Type
Open
Certifications
CSA file LR37055 guide 184-N-90; UL listed file E61239
Temperature Rise
80°C
Primary To Secondary Voltage
208/230/460 V 115 V
Fingersafe Cover Compatibility
FSC2
Insulation Temperature
266°F (130°C)

Description

Control Transformer, Input Voltage - Transformer 208V AC, 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 250 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 80 Degrees C, Enclosure Finish Epoxy Resin Varnish
