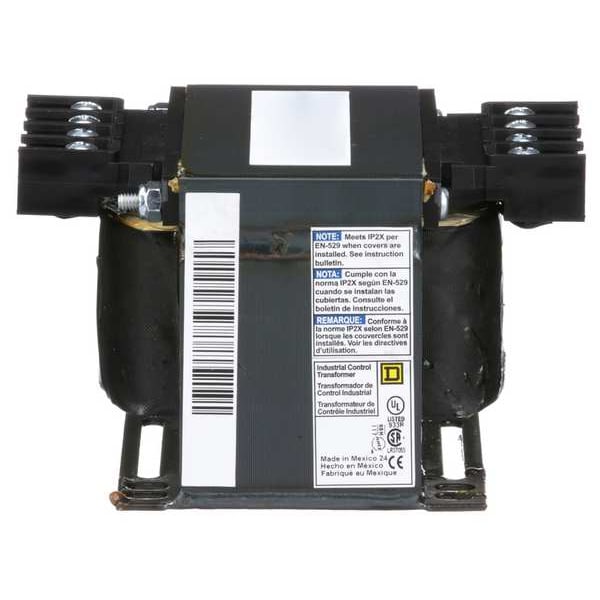

Control Transformer, 250 VA, Not Rated, 120V AC, 277V AC

Mfr # 9070T250D4
Zoro # G2029352

366.24

Free Shipping & Returns

Key Features

Input Voltage - Transformer

277V AC

Output Voltage

120V AC

Power Rating

250 VA

Phase

Single

Mounting - Transformer

Foot

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 9070T250D4
Zoro #: G2029352
UPC #: 785901313878
Country of Origin: Korea, Republic of

Dimensions

Overall Height: 3.2 in
Overall Width: 3.75 in
Overall Depth: 5.3 in
Manufacturers Warranty Length: 10 yr

Details

Item: Control Transformer
Input Voltage - Transformer: 277V AC
Output Voltage: 120V AC
Power Rating: 250 VA
Phase: Single
Mounting - Transformer: Foot
Hz - Electrical: 50/60 Hz
NEMA Enclosure Rating: Not Rated
Temperature Rise: 80 Degrees C
Enclosure Style - Transformer: Open
Enclosure Finish: Epoxy Resin Varnish
Standards: CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Protective Device: None
Fused: No
Green Environmental Attribute: Mercury Free; Pvc Free
Enclosure Type: Open
Primary Connection: Screw clamp terminals
Insulation Max. Temp.: 130 °C
Secondary Connection: Screw clamp terminals
Material: Copper: winding
Winding Material - Transformer: Copper
Primary To Secondary Voltage: 277 V 120 V
Fingersafe Cover Compatibility: FSC2
Insulation Temperature: 266°F (130°C)
Certifications: CSA file LR37055 guide 184-N-90; UL listed file E61239
Input Voltage: 277V AC
Frequency: 50/60 Hz
Enclosure Style: Open

Description

Control Transformer, Input Voltage - Transformer 277V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 250 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 80 Degrees C, Enclosure Finish Epoxy Resin Varnish
