  11. Manual Motor Switch, 100 A, 3 P, Phase, Rotary Handle, TeSys VARIO Series

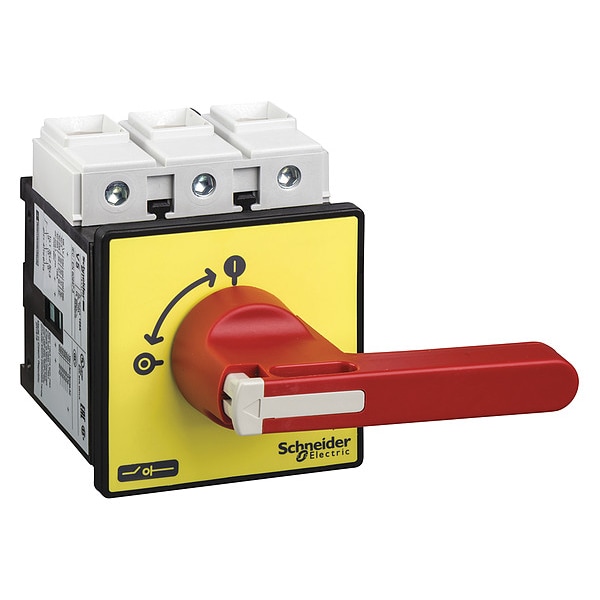

Square D Manual Motor Switch, 100 A, 3 P, Phase, Rotary Handle, TeSys VARIO Series VCF5 - main

Manual Motor Switch, 100 A, 3 P, Phase, Rotary Handle, TeSys VARIO Series

  • Mfr # VCF5

  • Zoro # G0861799

product price: $363.89
/ea
Free Shipping & Returns

Key Features

Height
125 mm
Width
90 mm
Standards
IEC 60947-3
Base Dimension
90 x 90 mm
Ip Degree Of Protection
IP20 conforming to IEC 60529 || IP65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VCF5
Zoro #
G0861799
UPC #
785901770466
Country of Origin
Czechia

Dimensions

Height
125 mm
Width
90 mm
Base Dimension
90 x 90 mm

Details

Item
Manual Motor Switch
Standards
IEC 60947-3
Ip Degree Of Protection
IP20 conforming to IEC 60529 || IP65
Handle Front Plate Colour
yellow
Performance Level
high performance
Breaking Capacity
1000 A 400 V AC-21A) || 1000 A 400 V AC-22A) || 1000 A 400 V AC-23A)
Protective Treatment
TC
Contacts Type And Composition
3 NO
Marking
0 - 1
[Icm] Rated Short-Circuit Making Capacity
2.8 kA 400 V at Ipeak
Rated Conditional Short-Circuit Current
10 kA 400 V 125 A aM || 10 kA 400 V 125 A gG
[Ith] Conventional Free Air Thermal Current
125 A
[Ie] Rated Operational Current
68.5 A AC-23 Ue: 400 V
Making Capacity
1250 A 400 V AC-21A || 1250 A 400 V AC-22A || 1250 A 400 V AC-23A
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Rotary Handle Mounting Style
direct
Handle Colour
red
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Tightening Torque
power circuit 22.6-22.6 N.m screw clamp terminals
Fixing Mode
by 4 screws handle
Device Short Name
VCF
Intermittent Duty Class
30
Rated Operational Power In W
22 kW 230 to 240 V AC-3) || 30 kW 400 to 415 V AC-3) || 30 kW 690 V AC-3) || 37 kW 500 V AC-3) || 37 kW 690 V AC-23A) || 45 kW 500 V AC-23A) || 22 kW 230 to 240 V AC-23A) || 37 kW 400 to 415 V AC-23A)
Suitability For Isolation
yes
[Icw] Rated Short-Time Withstand Current
1500 A 400 V 1 s
Ambient Air Temperature For Operation
-20-50°C
Mechanical Robustness
vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
[Ithe] Conventional Enclosed Thermal Current
100 A
Network Type
AC || DC
Compatibility Code
main switch disconnector
[Uimp] Rated Impulse Withstand Voltage
8 kV
Device Composition
switch || handle
Electrical Durability
30000 cycles AC-21 || 30000 cycles DC-1 to 5
Fire Resistance
960°C IEC 60695-2-1
Mounting Support
handle door || switch door
Mechanical Durability
30000 cycles
Current AC
68.5 A
Starter Style
IEC
Number of Poles
3
Operator
Rotary
Maximum Voltage Rating
690V AC
Terminal Connection Type
Screw Clamp
Mounting Style
Door
Series
TeSys VARIO

Description

100A Sw Kit W/4Hole Mtg Red/Yellow Oper
