  11. General Purpose Transformer, 30 kVA, NEMA 3R, 120/208V AC, 480V AC

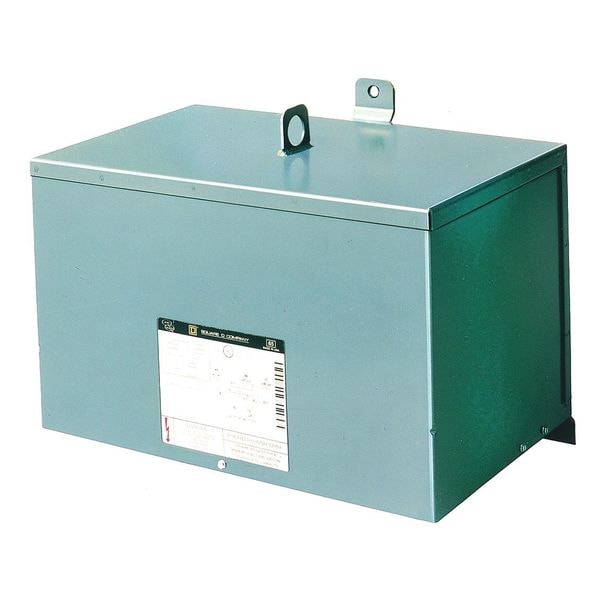

Square D General Purpose Transformer, 30 kVA, NEMA 3R, 120/208V AC, 480V AC 30T2F - main

General Purpose Transformer, 30 kVA, NEMA 3R, 120/208V AC, 480V AC

  • Mfr # 30T2F

  • Zoro # G9825313

product price: $10,188.99
/ea
Additional $185.00 delivery surcharge applies per item.
See details

Key Features

Input Voltage - Transformer
480V AC
Output Voltage
120/208V AC
Power Rating
30 kVA
Phase
3
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30T2F
Zoro #
G9825313
UPC #
785901039402
Country of Origin
Mexico

Dimensions

Overall Height
22 in
Overall Width
25 in
Overall Depth
13 1/2 in
Knockout Size - Transformer
1 in, 3/4 in

Details

Item
General Purpose Transformer
Input Voltage - Transformer
480V AC
Output Voltage
120/208V AC
Power Rating
30 kVA
Phase
3
Mounting - Transformer
Wall
Hz - Electrical
60 Hz
NEMA Enclosure Rating
NEMA 3R
IP Rating
IP54
Outdoor Rated - Transformer
Yes
Winding Material
Copper
Color
Gray
Enclosure Finish
Painted
Voltage Function - Transformer
Step Down
Enclosure Material
Steel
Standards
CSA Certified, cULus, REACH Regulation, RoHS, UL Listed
Winding Material - Transformer
Copper
Rated Power In Va
30 kVA
Number Of Tap-Offs
2 5 % FCBN
Temperature Rise
115°C
Insulation Temperature
180 Degrees C
Product Certifications
cULus, CSA, UL Listed
Primary Voltage
480 V delta 208Y/120 V
Includes Knockouts
Knockouts Included
Sound Level
42 dB

Description

Dry Type Power Distribution Transformer, Input Voltage - Transformer 480V AC Delta, Output Voltage - Transformer 120V AC, 208V AC Wye, VA Rating - Transformer 30 kVA, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Voltage Function - Transformer Step Down, Winding Material - Transformer Copper, Hz - Electrical 60 Hz, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP54
