Item

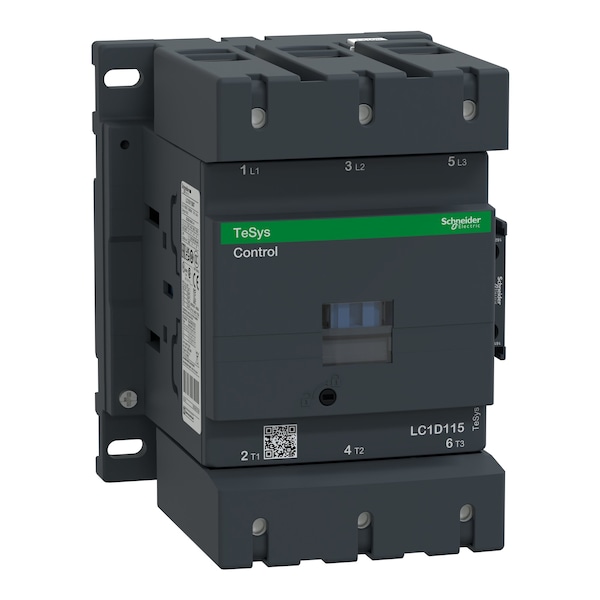

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
100 hp
Rated Making Capacity
1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Application
Motor Control, Resistive Load
Includes Protective Cover
Yes
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage
8 kV
Switching Current
5 mA (Signalling Circuit)
Rated Breaking Capacity
1100 A @ 440V
Electrical Durability
0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)
Max. Operating Watts
30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)
Operating Speed
2400 cycles per hr
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Mechanical Durability
8 Mcycles
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz)
Rated Short-Time Withstand Current
250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Operating Time
6 to 20 ms (Opening), 20 to 50 ms (Closing)
Fuse Amps
250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Shock Resistance
15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Switching Voltage
17 V (Signalling Circuit)
Overvoltage Category
CAT III
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 240V AC
40 hp
Minimum Operating Temperature
-40 Degrees F
Mechanical Operating Durability
8,000,000
Horsepower @ Three Phase - 480V AC
75 hp
Horsepower @ Three Phase - 208V AC
30 hp
Embedded Surge Suppressor
Yes
Number of Normally Open Main Contacts
3
Resistance Properties
Fire Resistant
Full Load Current - Inductive
115 A
Horsepower @ Three Phase - 600V AC
100 hp
Maximum Voltage Rating
1000V AC
Horsepower @ Single Phase - 240V AC
2 hp
Full Load Current - Resistive
200 A
Mounting Style
DIN Rail, Plate
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
800,000, 950,000
Rated Operational Current
200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 115 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 115 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Mechanical Robustness
Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 6 Gn for 11 ms)
Operating Altitude
0 to 9842.52 ft (0 to 3000 m)
Maximum Operating Rate
2400 cyc/h 140°F (60°C)
Climatic Withstand
IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
Safety Reliability Level
B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application
Resistive load; Motor control
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Pole Contact Composition
3 NO
Power Dissipation Per Pole
24 W AC-1; 7.9 W AC-3; 7.9 W AC-3e
Contact Compatibility
M13
Conventional Free Air Thermal Current
200 A (at 140°F (60°C)) for power circuit
Inrush Power in VA
280 to 350 VA 60 Hz cos phi 0.8 (at 68°F (20°C)); 280 to 350 VA 50 Hz cos phi 0.8 (at 68°F (20°C))
Control Circuit Type
AC 50/60 Hz
Rated Operational Voltage
Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
Protective Treatment
THIEC 60068-2-30
Fire Resistance
1562°F (850°C) IEC 60695-2-1
Utilisation Category
AC-1; AC-4; AC-3; AC-3e
Control Circuit Voltage
120 V AC 50/60 Hz
Heat Dissipation
3 to 8 W at 50/60 Hz
Ambient Air Temperature For Operation
-40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
