  15. Illuminated push-button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24-28V, 1 NO

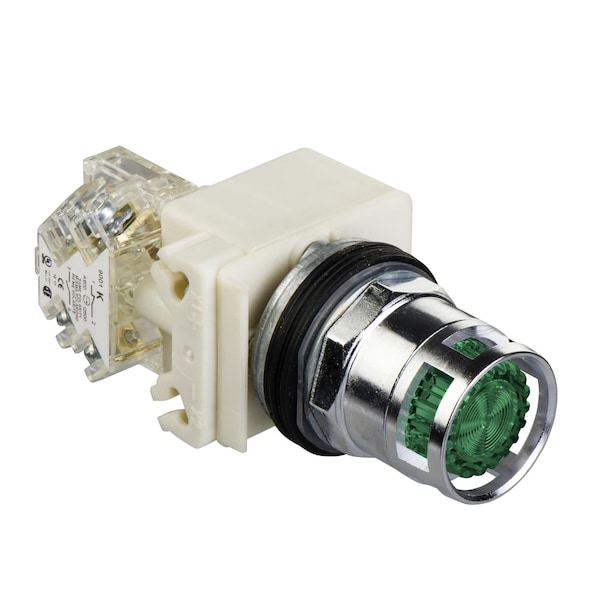

Square D Illuminated push-button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24-28V, 1 NO 9001K3L35GH5 - main

Illuminated push-button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24-28V, 1 NO

  • Mfr # 9001K3L35GH5

  • Zoro # G4063708

product price: $174.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K3L35GH5
Zoro #
G4063708
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE || CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR
Bezel Material
metal
Bulb Base
BA 9s
Device Short Name
K
Operator Additional Information
metal guard
Product Or Component Type
illuminated push-button
Light Block Supply
full voltage, direct
Cap/Operator Or Lens Colour
green
Type Of Operator
spring return
Contacts Type And Composition
1 NO
Operator Profile
green flush, flush
[Us] Rated Supply Voltage
24 to 28 V, 24 to 28 V AC/DC
Light Source
incandescent, incandescent bulb
Product Certifications
CE || CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Operating Position
any position
Device Presentation
complete product
Connections - Terminals
screw clamp terminals
Contact Operation
standard
Range of Product
Harmony 9001K

Description

PUSH BUTTON 600VAC 10A 30MM T-K
