  8. Illuminated push-button, Harmony 9001K, metal, plastic guard flush, yellow, 30mm, spring return, LED yellow, 24-28V, 1 NO

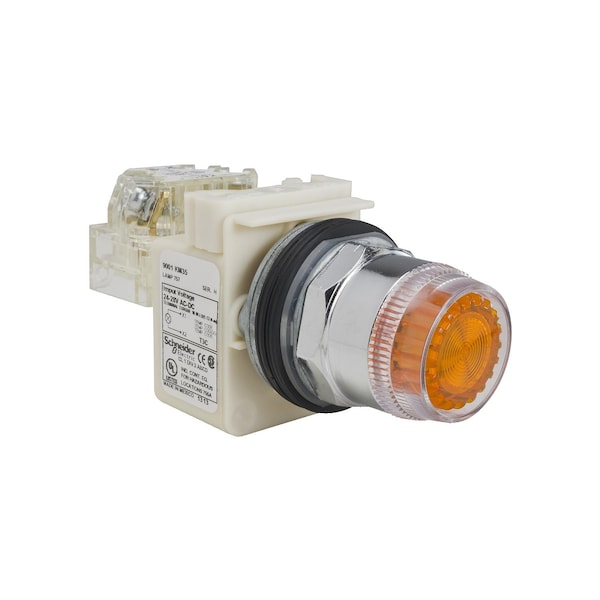

Square D Illuminated push-button, Harmony 9001K, metal, plastic guard flush, yellow, 30mm, spring return, LED yellow, 24-28V, 1 NO 9001K1L35LYYH5 - main

Illuminated push-button, Harmony 9001K, metal, plastic guard flush, yellow, 30mm, spring return, LED yellow, 24-28V, 1 NO

  • Mfr # 9001K1L35LYYH5

  • Zoro # G3302841

product price:  $194.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001K1L35LYYH5
Zoro #
G3302841
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Head Color
Yellow
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
UL listed file E42259 CCN NKCR || CE || CSA LR 25490 class 3211 03 || NEMA
Bezel Material
metal
Bulb Base
BA 9s
[Us] Rated Supply Voltage
24 to 28 V, 24 to 28 V AC/DC
Operator Additional Information
plastic guard
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Contact Operation
standard
Operating Position
any position
Product Certifications
UL listed file E42259 CCN NKCR || CE || CSA LR 25490 class 3211 03 || NEMA
Light Block Supply
direct
Light Source Colour
yellow
Type Of Operator
spring return
Light Source
LED
Cap/Operator Or Lens Colour
yellow
Device Presentation
complete product
Operator Profile
yellow flush, flush
Device Short Name
K
Contacts Type And Composition
1 NO
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Product Or Component Type
illuminated push-button
Connections - Terminals
screw clamp terminals
Range of Product
Harmony 9001K

Description

PUSH BUTTON 600VAC 10A 30MM T-K
