Item

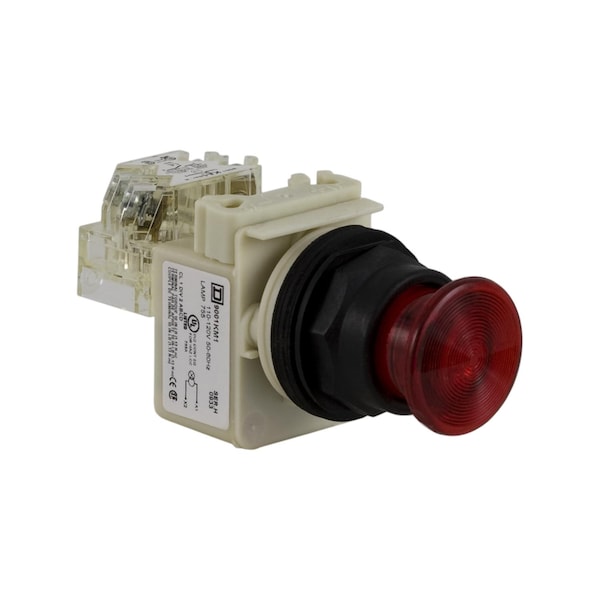

Illuminated Push Button
Push Button Style
Mushroom Head
Operator Illumination
Illuminated
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-5-1, JIS C 852, UL 508, EN/IEC 60947-1, JIS C 4520, EN/IEC 60947-5-4, CSA C22.2 No 14
Type of Operator
spring return
Light Source
incandescent
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
[Icm] Rated Short-Circuit Making Capacity
0.1 kA 240 V DC-13, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 125 V DC-13, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 250 V DC-13, 7200 VA
Ip Degree of Protection
IP66 IEC 60529
Shock Resistance
50 gn IEC 60068-2-27
Operating Position
any position
Device Presentation
complete product
Operator Additional Information
screw-on plastic
Contacts Type And Composition
1 C/O
Mechanical Durability
5000000 cycles
Electrical Shock Protection Class
class II IEC 61140
Contacts Material
silver alloy contacts
Light Block Supply
via integral transformer
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA
[Ith] Conventional Free Air Thermal Current
10A
Connections - Terminals
screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Contact Operation
standard
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Range of Product
Harmony 9001SK
Rated Breaking Capacity
1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 0.1 kA 240 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
[Us] Rated Supply Voltage
110...120 V
Nema Degree of Protection
NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Cap/Operator or Lens Colour
red
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Product or Component Type
illuminated push-button
Shape of Screw Head
cross slotted
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Ambient Air Temperature For Operation
-25-70°C
Operator Profile
mushroom Ø 35 mm
Product Or Component Type
illuminated push-button
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Ip Degree Of Protection
IP66 IEC 60529
Shape Of Screw Head
cross slotted
Type Of Operator
spring return
Product Certifications
NEMA || UL 508
Cap/Operator Or Lens Colour
red
