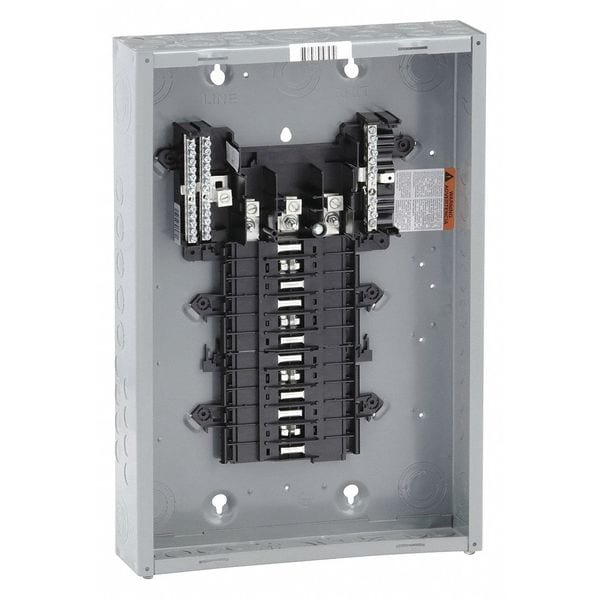

Square D Load Center, 24 Spaces, 125A Amps, 120/240V AC QO324L125G - main

CAD Viewer & Download Files

Load Center, 24 Spaces, 125A Amps, 120/240V AC

  • Mfr # QO324L125G

  • Zoro # G3309257

CAD Available
product price: $359.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Voltage
120/240V AC
Short Circuit Current Rating
65kA
Height
20.91 in
Width
14.25 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO324L125G
Zoro #
G3309257
UPC #
785901295433
Country of Origin
United States

Dimensions

Height
20.91 in
Width
14.25 in
Depth
3-3/4 in
Min. Wire Size
AWG 6
Max. Wire Size
AWG 2/0 aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
24
Amps
125A
Voltage
120/240V AC
Phase
3
Short Circuit Current Rating
65kA
Series
QO
Included Enclosure Cover
Order Separately
Recommended Surface Cover
G2590332
Recommended Flush Cover
G0877922
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Copper
Recommended Ground Bar Kit
Included
Special Features
Mercury Free
Circuit Breaker Type
QO
Standards
RoHS Compliant, UL Listed
Max. No. of Tandem Breakers
0
Max. Operating Temp.
104 Degrees F
Feed Location
Top/Bottom
Location
Indoor
For Use With
Square D QO Circuit Breakers
Enclosure Surface Finish
Enamel
Color
Gray
Min. Operating Temp.
23 Degrees F
Number Of Circuits
24
Primary/Ambient Air Temp.
-5°C || 40°C
Electrical Connection
lugs
Tightening Torque
main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || Cover 20 lb.in
Wiring Configuration
3-wire || 4-wire
Ground Bar Kit
grounding bar included (not installed)
Finish
Baked Enamel
CAD Available
Yes

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 24 spaces and 24 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.
