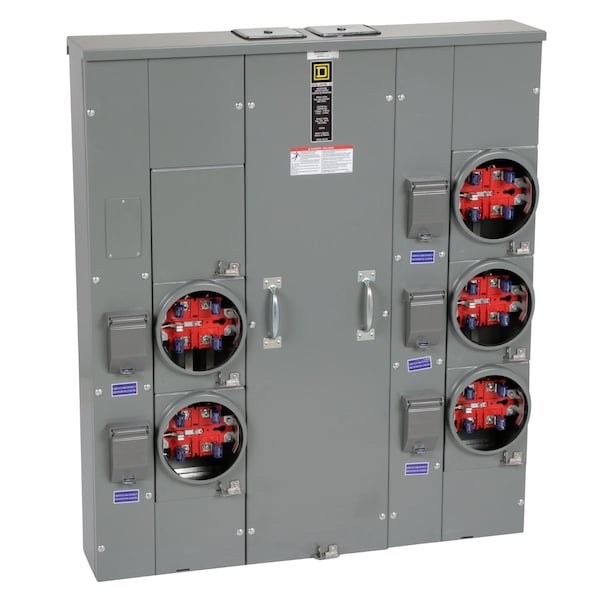

Square D Meter Main, MPR, 120/240V AC, Main Lug, 1 Phase MPR55125 - main

CAD Drawings

Download CAD Files

Meter Main, MPR, 120/240V AC, Main Lug, 1 Phase

  • Mfr # MPR55125

  • Zoro # G4609498

CAD Available
product price: $2,247.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Main Lug
Voltage
120/240V AC
Phase
1
Height
42.37 in
Width
36.46 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MPR55125
Zoro #
G4609498
UPC #
785901208082
Country of Origin
Mexico

Dimensions

Height
42.37 in
Width
36.46 in
Depth
7.28 in
Max. Wire Size
600 kcmil 1 aluminium
Min. Wire Size
AWG 1/0

Details

Item
Meter Main
Main Circuit Breaker or Main Lug
Main Lug
Voltage
120/240V AC
Phase
1
Series
MPR
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 3R
Bus Material
Aluminum
Mounting Style
surface
Standards
UL Listed
Circuit Breaker Type
Meter-Pak
Number of jaws
5
Main Rated Current
400 A || 500 A
Meter Socket Rated Current
125 A
Bus Rated Current
500 A
Number Of Meter Sockets
5
Bypass Type
no bypass
Meter Socket Type
ringless
Wiring Configuration
3-wire
CAD Available
Yes

Description

MP Meter Pak,meter center,five ringles
