  9. Load Center, 4 Spaces, 125A Amps, 120/240V AC

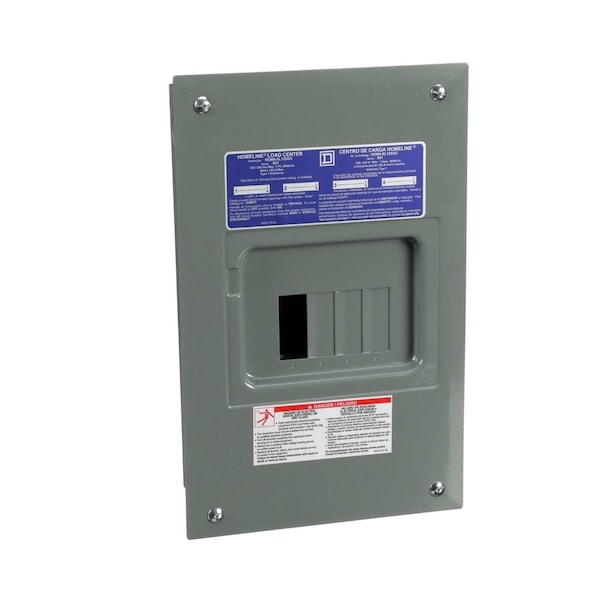

Square D Load Center, 4 Spaces, 125A Amps, 120/240V AC HOM48L125GC - main

Load Center, 4 Spaces, 125A Amps, 120/240V AC

  • Mfr # HOM48L125GC

  • Zoro # G0857845

product price: $44.79
/ea

Key Features

Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
4
Amps
125A
Voltage
120/240V AC
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HOM48L125GC
Zoro #
G0857845
UPC #
785901484363
Country of Origin
Mexico

Dimensions

Height
376 mm
Width
226 mm
Depth
97 mm
Max. Wire Size
AWG 2/0 copper
Min. Wire Size
AWG 14

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
4
Amps
125A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
HOM
Included Enclosure Cover
Combination
Recommended Surface Cover
Included
Recommended Flush Cover
Included
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Circuit Breaker Type
HOM
Standards
UL listed file E-6294
Max. No. of Tandem Breakers
4
Finish
Baked Enamel
For Use With
Homeline Plug in Circuit Breaker, Homeline load center accessories
Wiring Configuration
3-wire
Number Of Circuits
8
Primary/Ambient Air Temp.
-5°C || 40°C
Ground Bar Kit
grounding bar included (not installed); grounding bar 1 )
Provided Equipment
Grounding bar 1)
Rated Current
125 A
Ground Bar
Grounding bar included (not installed)
Bus Rated Current
125.0 A
Ambient Air Temperature For Operation
23°F (-5°C); 104°F (40°C)
Electrical Connection
Lugs
Box Number
21

Description

Load Center Hom Mlo 240V 125A 1 Ph 4Sp, Included Enclosure Cover Surface Cover
