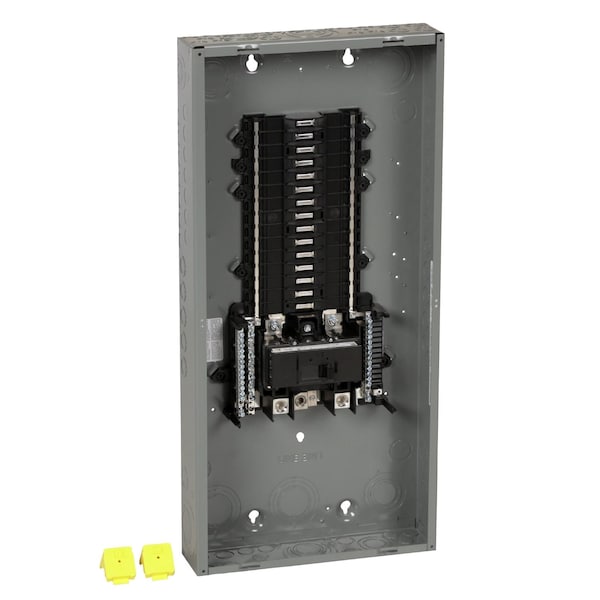

Square D Load Center, QO, 30 Spaces, 150A, PoN Convertible Main Breaker, 1 Phase QO130M150P - main

CAD Drawings

Download CAD Files

Load Center, QO, 30 Spaces, 150A, PoN Convertible Main Breaker, 1 Phase

  • Mfr # QO130M150P

  • Zoro # G3306874

CAD Available
product price: $310.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Number of Spaces
30
Phase
1
Short Circuit Current Rating
22kA
Height
758 mm
Width
362 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO130M150P
Zoro #
G3306874
UPC #
-
Country of Origin
United States

Dimensions

Height
758 mm
Width
362 mm
Min. Wire Size
AWG 4
Max. Wire Size
250 kcmil aluminium/copper

Details

Item
Load Center
Main Circuit Breaker or Main Lug
PoN Convertible Main Breaker
Number of Spaces
30
Amps
150A
Phase
1
Short Circuit Current Rating
22kA
Series
QO
Included Enclosure Cover
Order Separately
Enclosure Material
Steel
Enclosure NEMA Rating
NEMA 1
Bus Material
Copper
Max. No. of Tandem Breakers
10
Standards
UL Listed
For Use With
QO Mini Circuit Breaker, QO Circuit Breaker
Finish
Baked Enamel
Ground Bar Kit
grounding bar (ordered separately)
Primary/Ambient Air Temp.
-5°C || 40°C
Number Of Circuits
40
Tightening Torque
Cover 20 lb.in
Electrical Connection
lugs
Wiring Configuration
3-wire
CAD Available
Yes

Description

QO LoadCenter,Main Breaker,150 A,1 PH
