  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 32 A

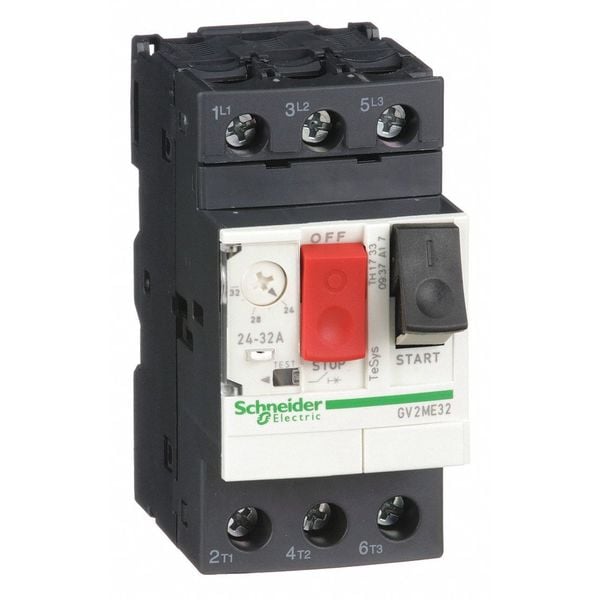

Square D Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 32 A GV2ME32 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 32 A

  • Mfr # GV2ME32

  • Zoro # G3296666

product price: $226.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
32 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME32
Zoro #
G3296666
UPC #
785901343295
Country of Origin
Thailand

Dimensions

Overall Height
3.5 in
Overall Width
1.77 in
Overall Depth
3.09 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
32 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Phase Loss Sensitivity
Yes
HP @ 3 Phase - 460-575V
20/30
HP @ 1 Phase - 230V
5 hp
Description/Special Features
Screw Clamp Terminals, Single Unit
HP @ 3 Phase - 575V
30 hp
Pilot Light
No
Product Name
TeSys GV2 || TeSys Deca
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Ambient Air Temperature For Storage
-40-80°C
Range
TeSys Deca
Operating Altitude
6561.68 ft (2000 m)
Rated Duty
continuous IEC 60947-4-1
Magnetic Tripping Current
416-416 A
Device Application
motor protection
Network Type
AC
Power Dissipation Per Pole
2.5 W
Device Short Name
GV2ME
Thermal Protection Adjustment Range
24-32 A IEC 60947-4-1
Fire Resistance
960°C IEC 60695-2-11
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Motor Power Kw
15-15 kW 400/415 V AC 50/60 Hz || 18.5-18.5 kW 500 V AC 50/60 Hz || 22-22 kW 690 V AC 50/60 Hz
Climatic Withstand
IACS E10
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Phase Failure Sensitivity
yes IEC 60947-4-1
Color
dark grey
Tightening Torque
1.7 N.m screw clamp terminal
Ik Degree Of Protection
IK04
Trip Unit Technology
thermal-magnetic
Electrical Operating Durability
100,000
Resistance Properties
Fire Resistant
Horsepower @ Single Phase - 120V AC
2 hp
Overload Protection Type
Thermal
Horsepower @ Three Phase - 600V AC
30 hp
Horsepower @ Three Phase - 208V AC
10 hp
NEMA Enclosure Rating
No Enclosure
Terminal Connection Type
Screw Clamp Terminals
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
140 Degrees F
Horsepower @ Single Phase - 240V AC
5 hp
Frequency
50/60 Hz
IP Rating
IP20
Horsepower @ Three Phase - 240V AC
10 hp
Minimum Overload Relay Current Setting
24 A
Mechanical Operating Durability
100,000
Horsepower @ Three Phase - 480V AC
20 hp
Starter Style
IEC
Includes Pilot Light
No
Maximum Voltage Rating
600V AC
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 5 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 32 A, Horsepower @ Three Phase - 208V AC 10 hp, Horsepower @ Three Phase - 240V AC 10 hp, Horsepower @ Three Phase - 480V AC 20 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 30 hp, Maximum Overload Relay Current Setting 32 A
