  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 40 A

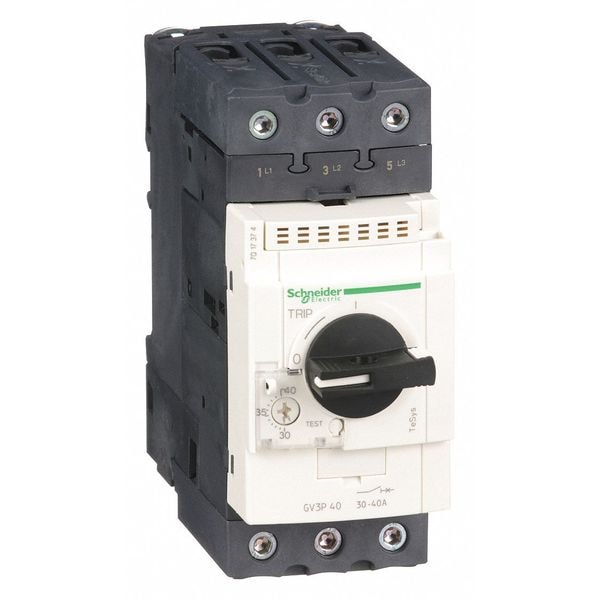

Square D Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 40 A GV3P40 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 40 A

  • Mfr # GV3P40

  • Zoro # G2694815

product price: $495.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
40 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV3P40
Zoro #
G2694815
UPC #
785901477204
Country of Origin
France

Dimensions

Overall Height
5.2 in
Overall Width
2.17 in
Overall Depth
5.35 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
40 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Description/Special Features
Class 10 Ambient-Compensated Thermal Overload Relay
HP @ 1 Phase - 230V
5 hp
HP @ 3 Phase - 575V
30 hp
Phase Loss Sensitivity
Yes
HP @ 3 Phase - 460-575V
30
Pilot Light
No
Trip Unit Technology
thermal-magnetic
Fire Resistance
960°C IEC 60695-2-11
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Ik Degree Of Protection
IK09 enclosure
Product Name
TeSys GV3 || TeSys Deca
Color
dark grey
Device Application
motor protection
Range
TeSys Deca
Power Dissipation Per Pole
8 W
Tightening Torque
5 N.m screw clamp terminal
Motor Power Kw
18.5-18.5 kW 400/415 V AC 50/60 Hz || 22-22 kW 500 V AC 50/60 Hz || 37-37 kW 690 V AC 50/60 Hz
Magnetic Tripping Current
560-560 A
Operating Altitude
9842.52 ft (3000 m)
Mechanical Robustness
shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
Thermal Protection Adjustment Range
30-40 A IEC 60947-4-1
Phase Failure Sensitivity
yes IEC 60947-4-1
Device Short Name
GV3P
Suitability For Isolation
yes IEC 60947-1
Utilisation Category
AC-3 IEC 60947-4-1
Network Type
AC
Rated Duty
continuous IEC 60947-4-1
Ambient Air Temperature For Storage
-40-80°C
Climatic Withstand
IACS E10
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
Mechanical Operating Durability
50,000
Terminal Connection Type
Screw Clamp Terminals
Horsepower @ Single Phase - 120V AC
3 hp
IP Rating
IP20
Frequency
50/60 Hz
Electrical Operating Durability
50,000
Mounting Style
DIN Rail
Overload Protection Type
Thermal
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 480V AC
25 hp
Starter Style
IEC
Resistance Properties
Fire Resistant
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Maximum Voltage Rating
600V AC
Minimum Operating Temperature
-4 Degrees F
Includes Pilot Light
No
Minimum Overload Relay Current Setting
30 A
Horsepower @ Three Phase - 600V AC
30 hp
NEMA Enclosure Rating
No Enclosure
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 3 hp, Horsepower @ Single Phase - 240V AC 5 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 40 A, Horsepower @ Three Phase - 208V AC 10 hp, Horsepower @ Three Phase - 240V AC 10 hp, Horsepower @ Three Phase - 480V AC 25 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 30 hp, Maximum Overload Relay Current Setting 40 A
