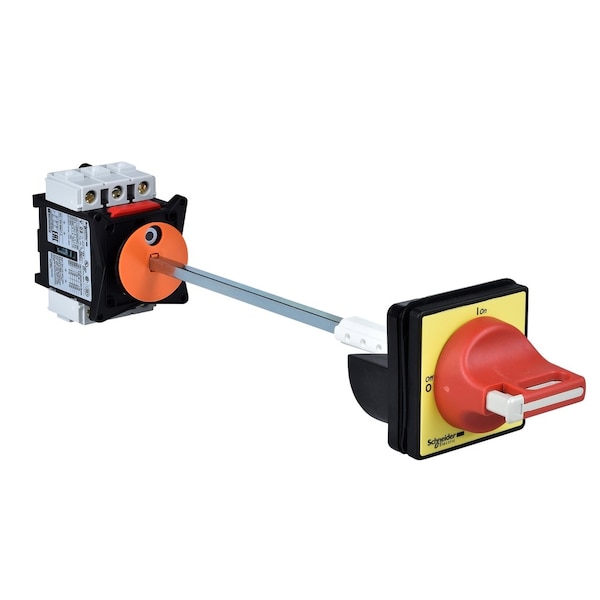

Manual Motor Switch, 16 A, 3 P, Phase, Rotary Knob, TeSys VARIO Series

Manual Motor Switch

IEC 60947-3

handle || switch || shaft extension

20 A

11 A AC-23 Ue: 400 V

690 V AC 50/60 Hz

-20-50°C

10 kA 400 V 20 A aM || 10 kA 400 V 20 A gG

main switch disconnector

100000 cycles AC-21 || 30000 cycles DC-1 to 5

100000 cycles

1 kA 400 V at Ipeak

AC || DC

by 4 screws handle || by clips switch || by screws switch

handle door || switch symmetrical rail || switch plate

VCCF

11 kW 690 V AC-23A) || 3 kW 230 to 240 V AC-3) || 4 kW 400 to 415 V AC-3) || 5.5 kW 500 V AC-3) || 7.5 kW 500 V AC-23A) || 7.5 kW 690 V AC-3) || 4 kW 230 to 240 V AC-23A) || 5.5 kW 400 to 415 V AC-23A)

1 to 3 padlocks 4-8 mm

0 - 1

TC

960°C IEC 60695-2-1

8 kV

red

yes

extended

3 NO

300 A 400 V 1 s

power circuit 2.1-2.1 N.m screw clamp terminals

16 A

200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A

200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A)

30

yellow

vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

IP20 conforming to IEC 60529 || IP65

high performance

11 A

690V AC

Rotary

Screw Clamp

3

IEC
