  11. Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Type K, Class 2510 Series, NEMA 4

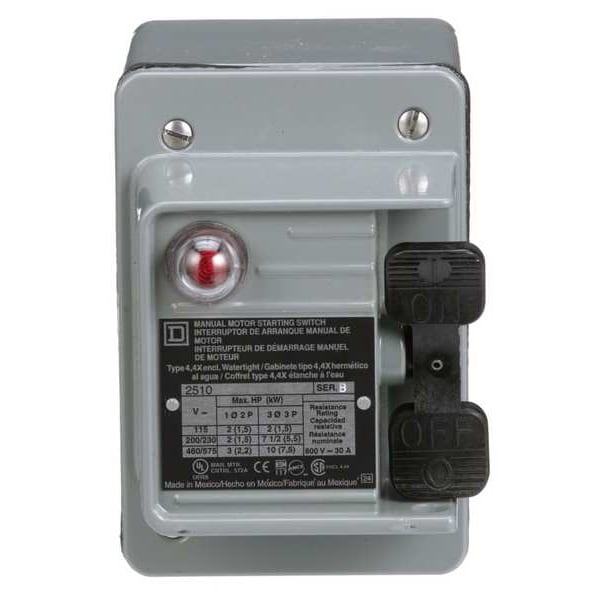

Square D Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Type K, Class 2510 Series, NEMA 4 2510KW1A - main

Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Type K, Class 2510 Series, NEMA 4

  • Mfr # 2510KW1A

  • Zoro # G2490187

product price: $375.99
/ea
Free Shipping & Returns

Key Features

Operator
Toggle
Type
K
Depth
4.25 in
Height
4.38 in
Width
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2510KW1A
Zoro #
G2490187
UPC #
785901077749
Country of Origin
Mexico

Dimensions

Depth
4.25 in
Height
4.38 in
Width
3 in
Hub Diameter
0.75 in
Overall Depth
4.56 in
Overall Width
3 in
Overall Height
4.38 in

Details

Operator
Toggle
Type
K
Item
Manual Motor Switch
Number of Poles
2
Description/Special Features
Pilot Light
HP @ 1 Phase - 230V
2 hp
HP @ 3 Phase - 460-575V
3 hp
Phase Loss Sensitivity
No
Standards
UL, CSA
Cable Entry
0.75 NPT (bottom)
Phase
1
Awg Gauge
AWG 14 to AWG 10 copper
Local Signalling
red indicator, 115 V
Maximum Horse Power Rating
2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
[Ue] Rated Operational Voltage
600 V AC || 230 V DC
Motor Starter Type
non reversing
Horsepower @ Three Phase - 240V AC
2 hp
Series
Type K
Horsepower @ 230V DC
1 1/2 hp
Horsepower @ Three Phase - 600V AC
3 hp
Terminal Connection Type
Screw
Horsepower @ Three Phase - 480V AC
3 hp
Horsepower @ Single Phase - 120V AC
2 hp
NEMA Enclosure Rating
NEMA 4
Maximum Voltage Rating
600V AC
Mounting Style
Surface
Horsepower @ Single Phase - 240V AC
2 hp
Starter Style
NEMA
Includes Pilot Light
Yes
Current AC
30 A
Hub Type
Dead End

Description

Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 240V AC 2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Horsepower @ Three Phase - 600V AC 3 hp, Includes Pilot Light Yes, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Hub Diameter 0.75 in, Hub Type Dead End
