  11. Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1

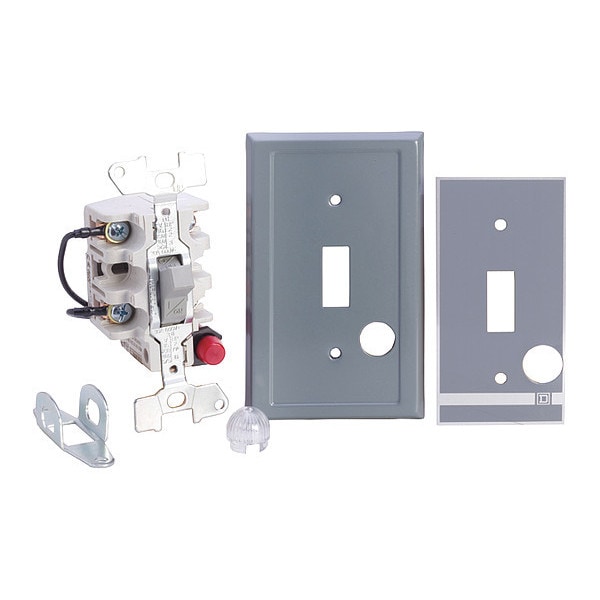

Square D Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1 2510KF2 - main

Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 1

  • Mfr # 2510KF2

  • Zoro # G7152162

product price: $158.99
/ea
Free Shipping & Returns

Key Features

Operator
Toggle
Depth
2.5 in
Height
4.5 in
Width
2.75 in
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2510KF2
Zoro #
G7152162
UPC #
785901554448
Country of Origin
Mexico

Dimensions

Depth
2.5 in
Height
4.5 in
Width
2.75 in
Overall Width
2.44 in
Overall Depth
2.75 in
Overall Height
4.25 in

Details

Operator
Toggle
Item
Manual Motor Switch
Number of Poles
3
Description/Special Features
Gray Flush Plate
HP @ 1 Phase - 230V
7 1/2 hp
Phase Loss Sensitivity
No
HP @ 3 Phase - 460-575V
10 hp
Standards
UL, CSA
Maximum Horse Power Rating
2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
Local Signalling
no indicator
Awg Gauge
AWG 14 to AWG 10 copper
Phase
3
Motor Starter Type
non reversing
[Ue] Rated Operational Voltage
600 V AC || 230 V DC
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Horsepower @ 230V DC
1 1/2 hp
Maximum Voltage Rating
600V AC/230V DC
Terminal Connection Type
Screw
Horsepower @ Three Phase - 600V AC
10 hp
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Mounting Style
Flush
Series
Type K
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 480V AC
10 hp
Includes Pilot Light
No
Starter Style
NEMA
Resistance Properties
Temperature Resistant
Current AC
30 A
NEMA Enclosure Rating
NEMA 1

Description

Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Three Phase - 600V AC 10 hp, Includes Pilot Light No, Number of Poles 3, Operator Toggle Switch, Phase Three, Starter Style NEMA, Terminal Connection Type Screw Terminals, Maximum Voltage Rating 230V DC, 600V AC
