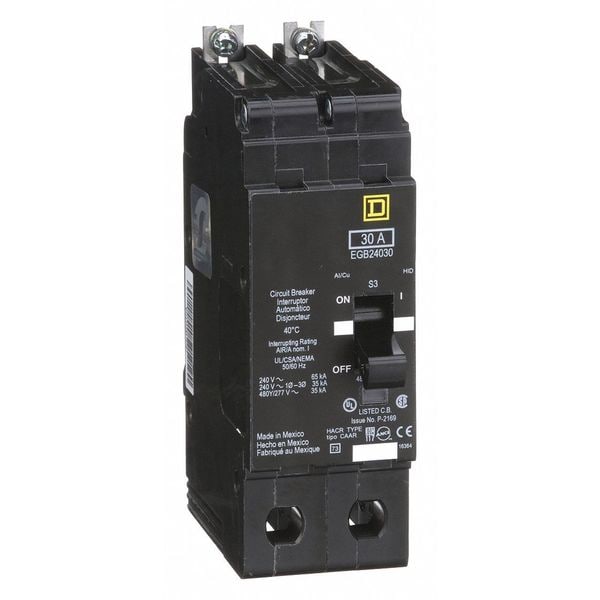

Miniature Circuit Breaker, E FRAME Series, 30A, 2 Pole, 277/480V AC, 65kA at 120V AC

  • Mfr # EGB24030

  • Zoro # G0567555

product price:
$
776.99
/ea
Free Shipping & Returns

Key Features

Series
E FRAME
Number of Poles
2
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EGB24030
Zoro #
G0567555
UPC #
785901397694
Country of Origin
Mexico

Dimensions

Frame Size
125A/EGB
Width
1.96 in
Depth
4.05 in
Height
5.66 in
Min. Wire Size
12 AWG (Al), 14 AWG (Cu)
Max. Wire Size
6 AWG (Cu/Al)

Details

Item
Miniature Circuit Breaker
Series
E FRAME
Amps
30A
Number of Poles
2
AC Voltage Rating
277/480V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
65kA at 120V AC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Features
Mercury Free
Standards
cULus
Application
HID rated Applications, HACR rated Applications
High Amp Trip Setting
875 A
For Use With
NF Panelboard
Interrupt Rating
35 kA at 480Y/277V AC, 65 kA at 120/240V AC
Protection Type
Short-circuit; Overload
Holding Current
270 A
Breaking Capacity Code
G
Module Type
E-Frame
AWG Gauge
AWG 12 to AWG 6 aluminium; AWG 14 to AWG 6 copper
Ambient Air Temperature For Operation
104°F (40°C)
Circuit Breaker Application
HID rated; HACR rated
Tightening Torque
30.09 lbf.in (3.4 N.m) 0.00 to 0.02 in² (2.5 to 16 mm²) (AWG 14 to AWG 6)
Breaking Capacity
35 kA 277 V AC; 65 kA 240 V AC; 35 kA 480Y/277 V AC; 65 kA 120 V AC; 65 kA 120/240 V AC
Local Signalling
Trip indicator

Description

Miniature Circuit Breaker 480Y/277V 30A, Series EGB
