  5. Miniature Circuit Breaker, HOM Series, 100A, 2 Pole, 120/240V AC, 10kA

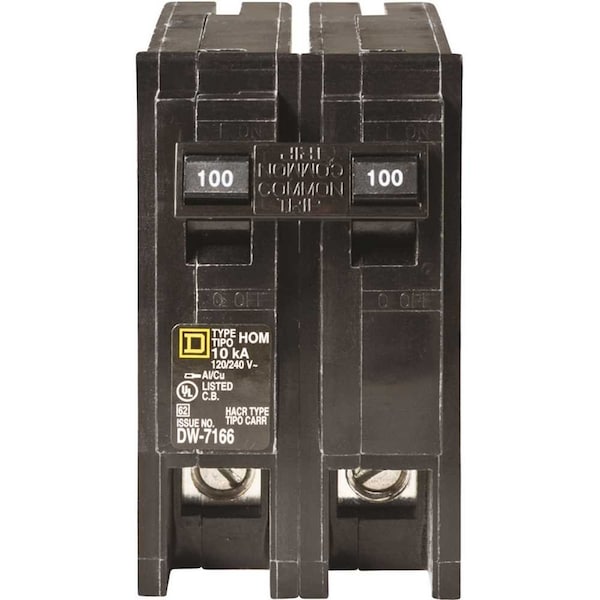

Square D Miniature Circuit Breaker, HOM Series, 100A, 2 Pole, 120/240V AC, 10kA HOM2100C - main

Miniature Circuit Breaker, HOM Series, 100A, 2 Pole, 120/240V AC, 10kA

  • Mfr # HOM2100C

  • Zoro # G308568117

product price:  $207.99
/ea
Free Shipping & Returns

Key Features

Series
HOM
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HOM2100C
Zoro #
G308568117
UPC #
785901482420
Country of Origin
United States

Dimensions

Width
2 in
Depth
2.98 in
Height
3.13 in
Max. Wire Size
2/0 AWG (Cu/Al)
Min. Wire Size
4 AWG (Cu/Al)

Details

Item
Miniature Circuit Breaker
Series
HOM
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Features
Mercury Free
Standards
UL Listed
Application
HACR rated Applications
Trip Type
Standard

Description

The Square D by Schneider Electric Homeline 100 Amp Two-Pole Circuit Breaker is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
  • Homeline 100 Amp two-pole circuit breaker
  • Plug-on design, easy to install
  • Compatible with Homeline load centers and CSED devices
  • 120/240-Volt AC
  • 10,000 AIR
