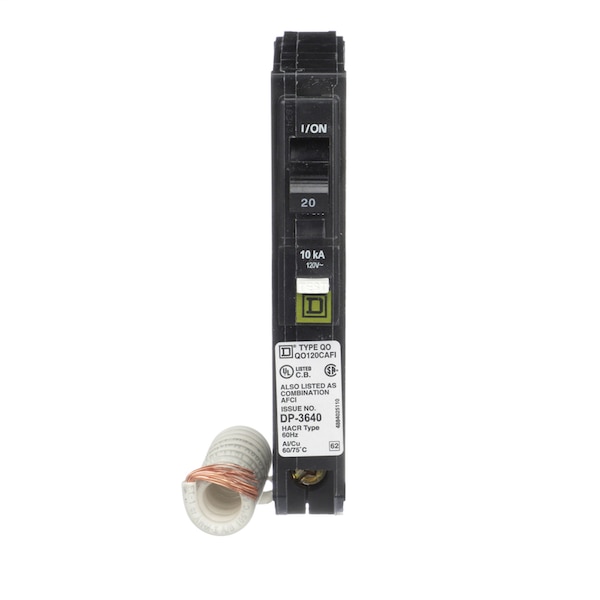

Miniature Circuit Breaker, QO Series, 20A, 1 Pole, 120/240V AC, 10kA at 120V AC
Mfr # QO120CAFIC
Zoro # G8628056
Key Features
Specifications
Product Information
- MFR #
- QO120CAFIC
- Zoro #
- G8628056
- UPC #
- 785901698180
- Country of Origin
- China
Dimensions
- Frame Size
- QO
- Width
- 19 mm
- Depth
- 74 mm
- Height
- 121 mm
- Max. Wire Size
- 8 AWG (Cu), 8 AWG (Al)
- Min. Wire Size
- 14 AWG (Cu), 12 AWG (Al)
Details
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 20 A
- Number of Poles
- 1
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Ground Fault Circuit Interrupter
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA at 120V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Pressure Plate
- DC Voltage Rating
- Not Rated
- Interrupt Rating
- 10 kA at 120/240V AC
- Application
- HACR rated Applications
- Features
- Mercury Free
- Standards
- UL Listed, CSA
Description
The Square D by Schneider Electric QO 20 amp Single-Pole Combination Arc-Fault Circuit Interrupting (CAFCI) Circuit Breaker is for use to help protect your wires from arcing faults and is intended for overload and short-circuits protection of your electrical system. Now standard in all Square D brand CAFCI circuit breakers, Time-Saver Diagnostics provide advanced trip indication technology, helping identify the type of fault that has occurred faster. Time-Saver Diagnostics helps take away the guess work and provides diagnostic assistance by identifying the type of fault that last occurred. It saves money by reducing troubleshooting time, simple to use, accurate and reliable. On top of that, all QO circuit breakers are equipped with the exclusive Visit-Trip indicator. When a QO Visit-Trip circuit breaker trips, the handle snaps to a midpoint position between inch OFF inch and ON inch and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection.
- • QO 20 amp single-pole combination AFCI circuit breaker
- • Compatible with QO load centers, CSED's and NQOD panel boards
- • 120V AC
- • 10000 AIR
- • Wire terminals UL listed for 2 branch wires (10 amp-30 amp, single and double-pole)
- •
