  9. Miniature Circuit Breaker, QO Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC, B Curve
Shop All Circuit Breakers
Square D

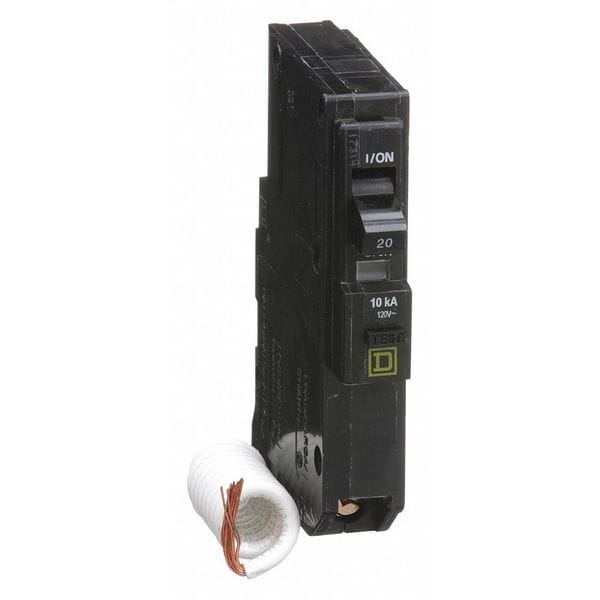

Miniature Circuit Breaker, QO Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC, B Curve

product price: $286.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series QO
  • Amps 20A
  • Number of Poles 1
  • AC Voltage Rating 120V AC
  • Circuit Breaker Type Ground Fault Circuit Interrupter
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Frame Size 100A/QO
Width 0.75 in
Depth 2.91 in
Height 4.13 in
Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
Max. Wire Size 8 AWG

Details

Item Miniature Circuit Breaker
Series QO
Amps 20A
Number of Poles 1
AC Voltage Rating 120V AC
Circuit Breaker Type Ground Fault Circuit Interrupter
Phase 1
Circuit Breaker Actuator Paddle
Circuit Breaker Mounting Style Plug In
Max. AIR Rating 10kA at 120V AC
Terminal Connection Pressure Plate
DC Voltage Rating Not Rated
Curve Type B
Standards UL Listed
For Use With QO Load Centers and NQ Panelboards
Features Mercury Free
Interrupt Rating 10 kA at 120V AC
Compatible Panelboard/Load Center Series NQ, QO

Description

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Ground Fault Equipment Protection (30mA), Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series NQ, QO, Phase Single, Series QO, Max. AIR Rating 10kA at 120V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure plate, Frame Size 100A/QO, Length 4.12 in, Width 0.75 in
