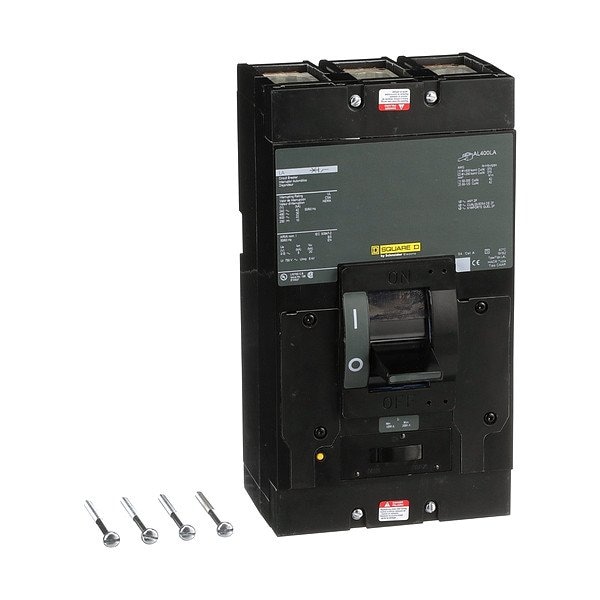

Molded Case Circuit Breaker, 600V AC
Mfr # LAL36125
Zoro # G122588162
product price:Â
$
4,962.99
/ea
Free Shipping & Returns
Key Features
Amps
125A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Low Voltage
Circuit Breaker Actuator
Button
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LAL36125
- Zoro #
- G122588162
- UPC #
- -
- Country of Origin
- Mexico
- Item
- Molded Case Circuit Breaker
- Amps
- 125A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- Low Voltage
- Circuit Breaker Actuator
- Button
- Circuit Breaker Mounting Style
- Unit Mount
- Max. AIR Rating
- 22kA at 600V AC
- Trip Type
- Thermal Magnetic
- Instantaneous Trip
- Fixed
- Terminal Connection
- Line/Load Lug
- Phase Connection
- Non-Applicable
- DC Voltage Rating
- 250V DC
- Application
- HACR rated
- Standards
- CSA Certified, IEC Certified, REACH Regulation, RoHS Directive, UL Listed
- Min. Operating Temp.
- 14 Degrees F
- Low Amp Trip Setting
- 10 kA
- High Amp Trip Setting
- 22 kA
- For Use With
- Control Equipment Panels
- Max. Operating Temp.
- 104 Degrees F
Description
Molded Case Circuit Breaker, 125 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 22kA at 600V AC, For Use With Control Equipment Panels, High Amp Trip Setting 22 kA, Low Amp Trip Setting 10 kA, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Not Applicable, Instantaneous Trip Fixed, Phase Connection Non-Applicable, Frame Size AL400LA, Circuit Breaker Mounting Style Unit Mount, Height 11 in
