- Item

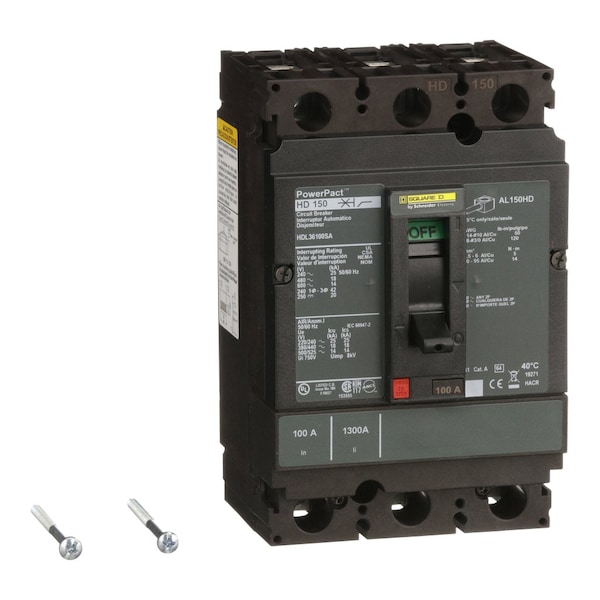

- Molded Case Circuit Breaker
- Series
- POWERPACT H
- Amps
- 100 A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- Shunt Trip
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Surface Mount/DIN Rail
- Max. AIR Rating
- 25kA at 240VAC
- Trip Type
- Shunt Trip, Thermal Magnetic
- Instantaneous Trip
- Fixed
- Terminal Connection
- Lugs
- DC Voltage Rating
- 250V DC
- Application
- HACR rated Applications; Distribution
- Interrupt Rating
- 25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC
- High Amp Trip Setting
- 1700 A
- Standards
- UL, CSA, NEMA, NOM, CE
- Color
- Black
- Features
- Mercury Free; PVC Free
- Magnetic Hold Current
- 900 A
- Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-3
- Operating Altitude
- Less than 6561.68 ft (2000 m) without derating; 5000 m with derating
- AWG Gauge
- AWG 14 to AWG 3/0 aluminium/copper terminal
- Ambient Air Temperature For Operation
- 28 to 158°F (-2 to 70°C)
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Tightening Torque
- 44.25 lbf.in (5 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 in² (10 to 95 mm²) (AWG 8 to AWG 3/0)
- Terminal Identifier
- AL150HD
- Local Signalling
- Switched off (OFF) 1 trip indicator green)
- Number Of Slots
- 2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)
- Network Frequency
- 50/60 Hz
- Breaking Capacity Code
- D
- Rated Insulation Voltage
- 750 V IEC 60947-2
- Ambient Air Temperature For Storage
- -58 to 185°F (-50 to 85°C)
- Suitability For Isolation
- Yes IEC 60947-2
- Rated Service Breaking Capacity
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2; 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 14 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2
- IP Degree Of Protection
- Front cover IP40 IEC 60529
- Product Certifications
- UL; CSA; NOM
- Continuous Current Rating
- 0.8
- Breaking Capacity
- 25 kA 240 V AC 50/60 Hz UL 489; 18 kA 480 V AC 50/60 Hz; 14 kA 600 V AC 50/60 Hz; 20 kA 250 V DC
- Accessory / Separate Part Type
- Shunt trip 110 to 130 V AC compartment
- Communication Interface
- Modbus; Ethernet
- Quality Labels
- CE
- Pollution Degree
- 3 IEC 60947-1
- Circuit Breaker Application
- HACR rated
- Protected Poles Description
- 3t
- Device Application
- Distribution
