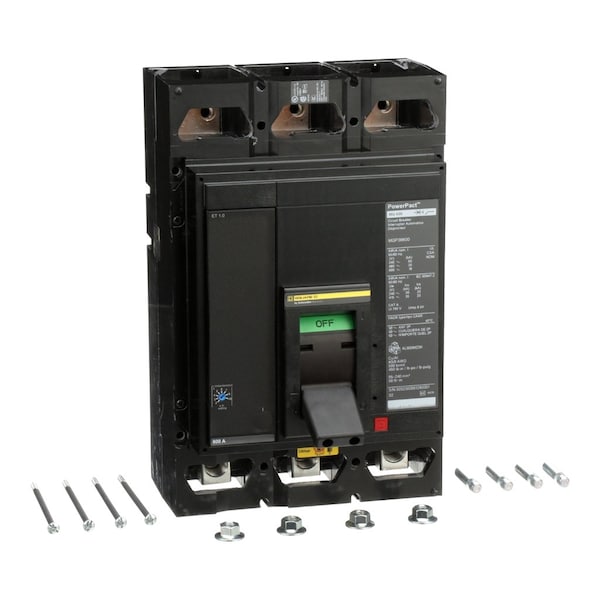

Molded Case Circuit Breaker, POWERPACT M Series, 600A, 3 Pole, 600V AC, 65kA at 240V AC
Mfr # MGP36600
Zoro # G0841989
product price:Â
$
7,096.99
/ea
Free Shipping & Returns
Key Features
Series
POWERPACT M
Amps
600 A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MGP36600
- Zoro #
- G0841989
- UPC #
- 785901563532
- Country of Origin
- Korea, Republic of
Dimensions
- Frame Size
- 800A/M
- Width
- 8.27 in
- Depth
- 8.05 in
- Height
- 12.86 in
- Min. Wire Size
- (3) 3/0 AWG (Cu/Al)
- Max. Wire Size
- (3) 500 kcmil (Cu/Al)
Details
- Item
- Molded Case Circuit Breaker
- Series
- POWERPACT M
- Amps
- 600 A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- Standard
- Circuit Breaker Actuator
- Operating Handle
- Circuit Breaker Mounting Style
- Surface Mount/DIN Rail
- Max. AIR Rating
- 65kA at 240V AC
- Trip Type
- Electronic
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- Interrupt Rating
- 25 kA at 240V AC, 20 kA at 380/415V AC, 65 kA at 240V AC, 35 kA at 380/415/480V AC, 18 kA at 600V AC, 50 kA at 240V AC
- Features
- Mercury Free; PVC Free
- Application
- HACR rated Applications; Distribution
- Standards
- UL, CSA, NEMA, NOM, CE
- High Amp Trip Setting
- 1200 to 6000 A
- Color
- Black
Description
Molded Case Circuit Breaker 600V 600A
