  5. Molded Case Circuit Breaker, POWERPACT Q Series, 100A, 3 Pole, 240V AC, 25kA at 240V AC

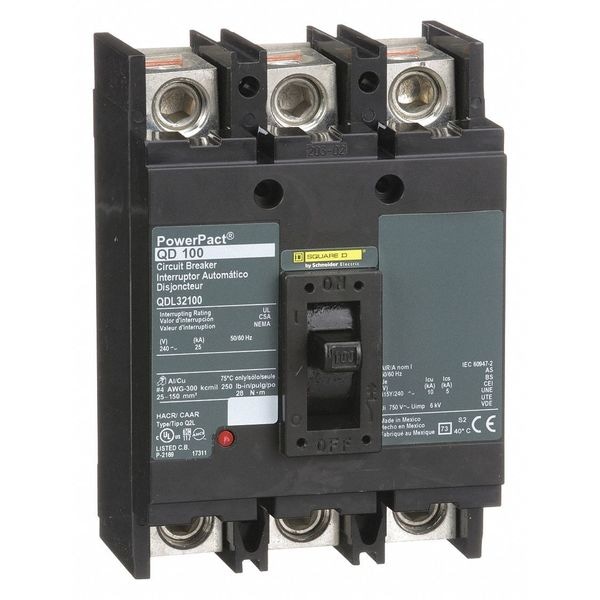

Square D Molded Case Circuit Breaker, POWERPACT Q Series, 100A, 3 Pole, 240V AC, 25kA at 240V AC QDL32100 - main
Shop SQUARE D

Molded Case Circuit Breaker, POWERPACT Q Series, 100A, 3 Pole, 240V AC, 25kA at 240V AC

  • Mfr # QDL32100

  • Zoro # G0447921

product price:  $1,167.09
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT Q
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
QDL32100
Zoro #
G0447921
UPC #
785901662402
Country of Origin
Mexico

Dimensions

Frame Size
250A/QD
Width
4-1/2 in
Depth
3.93 in
Height
6.47 in
Min. Wire Size
4 AWG
Max. Wire Size
300 MCM
Power Wire Stripping Length
0.87 in (22 mm)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT Q
Amps
100A
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
25kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
Not Rated
High Amp Trip Setting
2,400 A
Low Amp Trip Setting
1,200 A
Standards
CSA, IEC, UL Listed
Interrupt Rating
25 kA at 120/208/240V AC
Application
HACR rated Applications; Distribution
Features
Mercury Free; PVC Free
Control Type
Operating handle
Circuit Breaker Application
HACR rated
Continuous Current Rating
0.8
Local Signalling
1 trip indicator green)
Product Certifications
UL; CSA; NOM
Ambient Air Temperature For Operation
104 to 158°F (40 to 70°C)
Rated Impulse Withstand Voltage
8 kV UL
Network Frequency
50/60 Hz
Tightening Torque
247.82 lbf.in (28 N.m) 0.04 to 0.23 in² (25 to 150 mm²) (AWG 4 to 300 kcmil)
Mechanical Durability
1000 cycles loaded; 5000 cycles no load
Breaking Capacity
25 kA 120/208 V AC 50/60 Hz UL; 25 kA 240 V AC 50/60 Hz UL
Magnetic Tripping Current
2400 A
Magnetic Hold Current
1200 A
Rated Operational Voltage
240 V AC 50/60 Hz UL
Breaking Capacity Code
D
Device Application
Distribution

Description

Molded Case Circuit Breaker, 100 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 25kA at 240V AC, For Use With -, Series QD, High Amp Trip Setting 2,400 A, Low Amp Trip Setting 1,200 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 250A/QD, Circuit Breaker Mounting Style Free Standing, Height 6.47 in, Width 4.5 in, Depth 3.93 in
