  13. Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp

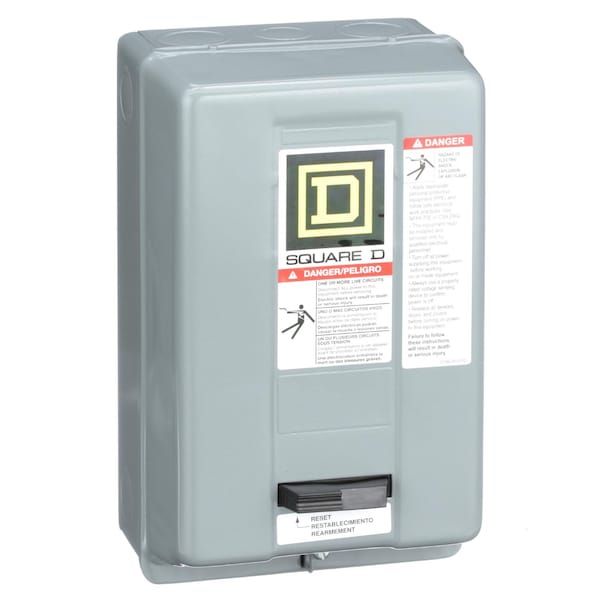

Square D Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp 8536SAG11V02S - main

Motor Starter, Non-Reversing, No Auxiliary Contacts, 110V-120V AC, 2 P, Screw Clamp

  • Mfr # 8536SAG11V02S

  • Zoro # G0852279

product price: $385.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
2
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8536SAG11V02S
Zoro #
G0852279
UPC #
785901018711
Country of Origin
Mexico

Dimensions

NEMA Size
00
Overall Width
152 mm
Overall Depth
141 mm
Overall Height
254 mm

Details

Item
Motor Starter
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
110V-120V AC
Number of Poles
2
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
CSA, UL Listed, NEMA
Enclosure Type
Painted Steel Sheet
Features
Pvc Free
Operating Voltage
600V AC
Auxiliary Contacts
Without
Control Circuit Type
Separate Control Circuit
Rated Current
9 A
Short Circuit Current Rating
Circuit-breaker: 5 kA at 600 V AC; Fuse: 5 kA at 600 V AC
Control Units
No control units
Horsepower Rating
0.33 HP 115 V AC; 1 HP 230 V AC
Maximum Voltage Rating
600 V AC
Phase
1 phase
Range of Product
S
Frequency
50/60 Hz
Current AC
9:00 AM
Control Circuit Voltage
110 V AC 50 Hz, 120 V AC 60 Hz
NEMA Enclosure Rating
NEMA 1
Overload Protection Type
Melting Alloy

Description

Starter Motor Control Less Than1000Vac
