  13. NEMA Control Relay, 4NO, 240VAC, 10A

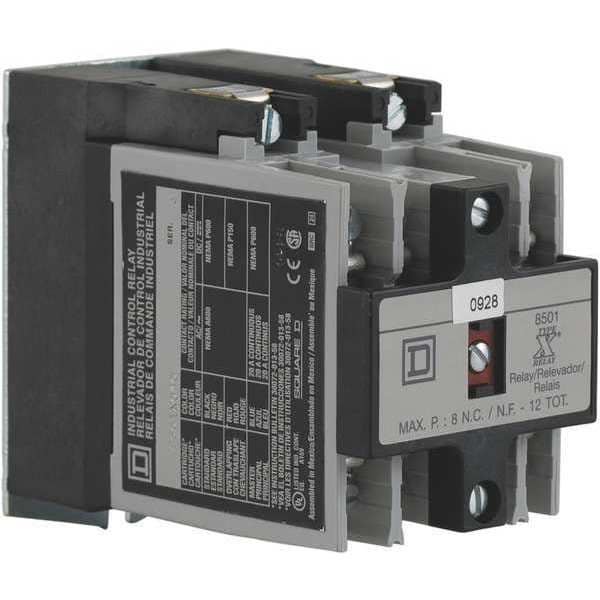

Square D NEMA Control Relay, 4NO, 240VAC, 10A 8501XO40V03 - main

NEMA Control Relay, 4NO, 240VAC, 10A

  • Mfr # 8501XO40V03

  • Zoro # G0866424

product price: $226.99
/ea
Free Shipping & Returns

Key Features

Coil Volts
240V AC
Hz
50/60
Response Time
15 msec (Pick-Up Time), 16 msec (Drop-Out Time)
Number of Pins - Relay
10
Body Height - Relay
3.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501XO40V03
Zoro #
G0866424
UPC #
785901536758
Country of Origin
Mexico

Dimensions

Body Height - Relay
3.5 in
Body Depth - Relay
3.95 in
Overall Height - Relay
3.5 in
Body Width - Relay
2.23 in
Depth
3.95 in
Width
2.23 in
Height
3.5 in
Lead Size
18 AWG
Body Height
3.5 in
Body Depth
3.95 in
Overall Height
3.5 in
Body Width
2.23 in

Details

Item
NEMA Control Relay
Coil Volts
240V AC
Hz
50/60
Response Time
15 msec (Pick-Up Time), 16 msec (Drop-Out Time)
Number of Pins - Relay
10
Standards
CSA Certified, RoHS Compliant, UL Listed
Mounting
Panel
AC Contact Rating - Relay
10A @ 120/240/480/600V
Contact Material
Silver Cadmium Oxide
Accessory Group
A
Features
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
DC Contact Rating - Relay
5A @ 125/250V
Contact Form
4NO
Mounting - Relay
Surface
Contact Amp Rating (Resistive)
10A
Power Consumption - Relay
23.0 VA
Item - Relay
NEMA Style Control Relay
Hz - Electrical
50 Hz, 60 Hz
Contact Form - Relay
(4) SPST-NO
Line Rated Current
10 A AC || 5 A DC
Control Circuit Voltage Limits
operational 0.85 to 1.1 Uc AC 50/60 Hz
Awg Gauge
AWG 18 to AWG 12 copper
[Icm] Rated Short-Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
Operating Time
15 ms - pick-up || 16 ms - drop-out
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
Inrush Power In Va
148-148 VA 60 Hz || 143-143 VA 50 Hz
Contacts Type And Composition
4 NO 4 standard contact cartridges
Electrical Connection
Screw Clamp
Product Or Component Type
relay
Product Certifications
UL listed file E78403 CCN NKCR || CSA LR60905 class 3211 03
Hold-In Power Consumption In Va
23-23 VA 60 Hz || 25-25 VA 50 Hz
Relay Type
control
[Uc] Control Circuit Voltage
220 V AC 50 Hz || 240 V AC 60 Hz
Rated Breaking Capacity
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
Mounting Support
panel
Ambient Air Temperature For Operation
-40-160 °F
Relay Style
NEMA
Contact Rating (DC)
0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V
Contact Rating (AC)
10 A @ 600V
Power Consumption
23 VA
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
160 Degrees F
Number of Pins
10
Compatible with Series
8501 Type X Latching Control Relays
Coil Voltage
220/240V AC
Mounting Style
Surface
Frequency
50/60 Hz
Current Rating
10 A
Input Voltage
220/240V AC

Description

NEMA Control Relay, Current Rating 10 A, Contact Form 4NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 220/240V AC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 23 VA, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 50/60 Hz, Body Depth 3.95 in, Body Height 3.5 in, Body Width 2.23 in
