  13. NEMA Fusible Str, Size 1,120V Coil, 1 Enc

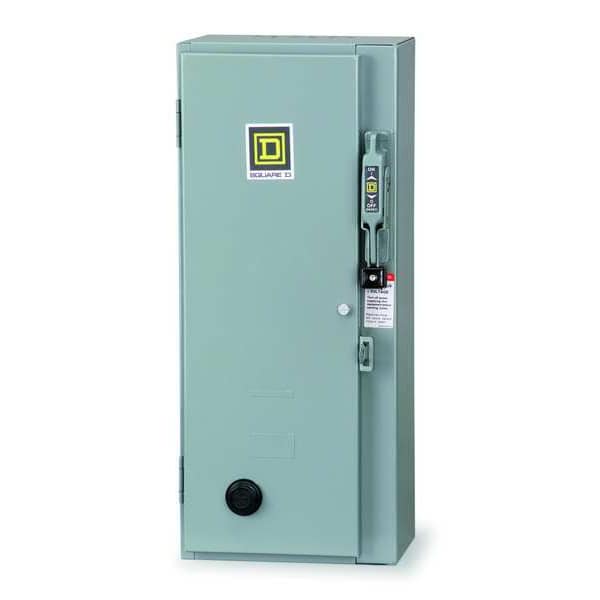

Square D NEMA Fusible Str, Size 1,120V Coil, 1 Enc 8538SCG14V02S - main

NEMA Fusible Str, Size 1,120V Coil, 1 Enc

  • Mfr # 8538SCG14V02S

  • Zoro # G1005207

product price: $1,182.99
/ea
Free Shipping & Returns

Key Features

NEMA Size
1
Amps AC
27
Max. Motor Voltage
600V AC
Coil Volts
120V AC
Fuse Clip Type
Class H
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8538SCG14V02S
Zoro #
G1005207
UPC #
785901748359
Country of Origin
Mexico

Dimensions

NEMA Size
1
Overall Depth
8.34 in
Overall Height
22.5 in
Mounting Hole Distance - Height
22.5 in
Overall Width
9.5 in
Mounting Hole Diameter
0.31 in
Mounting Hole Distance - Width
9.5 in
Frame Size
S

Details

Item
NEMA Combination Starter
Amps AC
27
Max. Motor Voltage
600V AC
Coil Volts
120V AC
Fuse Clip Type
Class H
Enclosure NEMA Rating
1
Short Circuit Protection
Fusible Disconnect
Overload Relay Amp Setting
Melting Alloy
Operator
None
Trip Class
10/20
Pilot Light
No
Control Transformer
No
HP @ 3 Phase - 480V
10 hp
Hz
50/60
Thermal Unit Code
D1
Standards
CSA, REACH, UL Listed
Control Type
no control units
Disconnector Device Type
fusible disconnect switch H, 30 A
Maximum Horse Power Rating
10-10 hp 460 V AC, 3 phase || 10-10 hp 575 V AC, 3 phase
Poles Description
3P
Motor Starter Type
non reversing
Control Circuit
separate control circuit
Product Or Component Type
Combination Starter
Nema Degree Of Protection
NEMA 1 painted sheet steel with external reset
[Uc] Control Circuit Voltage
110 V AC 50 Hz || 120 V AC 60 Hz
Thermal Overload Type
melting alloy 3
Auxiliary Contact Composition
without
Local Signalling
no indicator
[Ue] Rated Operational Voltage
600 V AC
Number of Poles
3
Frequency
50/60 Hz
Includes Auxiliary Contacts
No
Starter Style
NEMA
Horsepower @ Three Phase - 600V AC
10 hp
NEMA Enclosure Rating
1
For Fuse Class
Class H
Maximum Voltage Rating
600V AC
Terminal Connection Type
Quick-Disconnect Terminals
Reversing Capability
Non-Reversing
Mounting Style
Bracket
Series
8538
Includes Pilot Light
No
Phase
Three
Includes Control Transformer
No
Overload Protection Type
Thermal
Horsepower @ Three Phase - 480V AC
10 hp
Horsepower @ Three Phase - 240V AC
5 hp
NEMA Enclosure Material
Steel
Horsepower @ Three Phase - 208V AC
5 hp
Current AC
27 A
Coil Voltage
120V AC
Number of Auxillary Contacts
0

Description

NEMA Combination Starter, Coil Voltage 120V AC, Current AC 27 A, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 1, NEMA Size 1, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form Not Applicable, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20, Horsepower @ Three Phase - 208V AC 5 hp, Control Transformer Voltage Not Applicable, Series 8538
