  15. Nonfusible, Safety Switch, Heavy Duty, 600 V, 3PDT

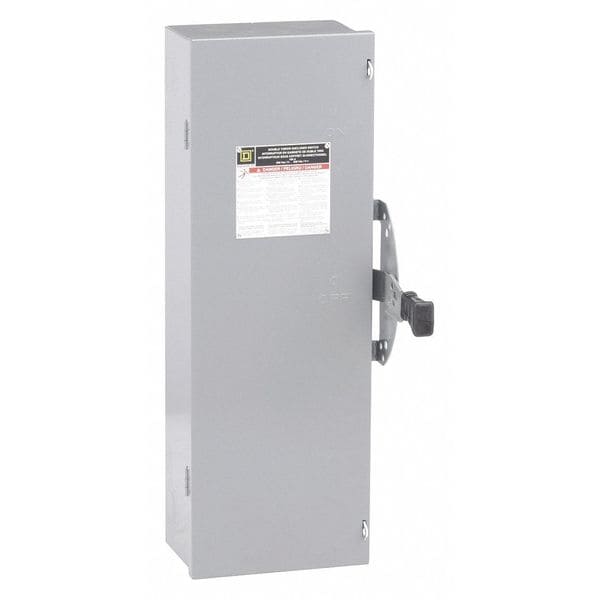

Square D Nonfusible, Safety Switch, Heavy Duty, 600 V, 3PDT DTU363 - main

CAD Drawings

Download CAD Files

Nonfusible, Safety Switch, Heavy Duty, 600 V, 3PDT

  • Mfr # DTU363

  • Zoro # G2446552

CAD Available
product price: $1,977.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Nonfusible
Contact Form
3PDT
Current Rating
100 A
Phase
Three
Environment
Indoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DTU363
Zoro #
G2446552
UPC #
785901308683
Country of Origin
United States

Dimensions

Depth
7.0 in
Height
30.0 in
Width
12.0 in
Wire Size
AWG 12 to AWG 1/0 aluminium; AWG 14 to AWG 1/0 copper

Details

Item
Safety Switch
Protection Method
Nonfusible
Contact Form
3PDT
Current Rating
100 A
Phase
Three
Environment
Indoor
Enclosure Type
NEMA 1
HP
100 HP
Voltage
600 V
Housing Material
Steel
Standards
UL Listed
IP Rating
20
Amps AC
100 A
Number of Wires
3
Material of Construction
Steel
Metallic / Non-Metallic
Metallic
Number of Poles
3
Fusible / Nonfusible
Nonfusible
Duty
Heavy
Gauge/Conductor
12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper)
Mounting
Surface
Features
Mercury Free, Toxic Heavy Metal Free
Neutral Assembly Included
No
Weight
17.69 kg
Horsepower @ 240V AC
40 hp
Mounting Style
Surface Mount
Horsepower @ 600V AC
100 hp
NEMA Enclosure Rating
1
Horsepower @ 480V AC
75 hp
Disconnect Type
Non-fusible disconnect switch
Short-Circuit Current
10 kA H or K; 200 kA R, J or T
Tightening Torque
35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.06 to 5.26 mm²) (AWG 14 to AWG 1/0); 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.08 in² (13.30 to 53.48 mm²) (AWG 8); 50 lbf.in (5.65 N.m) 0.04 to 0.08 in² (26.67 to 53.48 mm²) (AWG 6 to AWG 4)
Motor Power HP
20 hp at 240 V AC 50-60 Hz for 1 phase motors; 40 hp at 240 V AC 50-60 Hz for 3 phase motors; 40 hp at 480 V AC 50-60 Hz for 1 phase motors; 75 hp at 480 V AC 50-60 Hz for 3 phase motors; 40 hp at 600 V AC 50-60 Hz for 1 phase motors; 100 hp at 600 V AC 50-60 Hz for 3 phase motors; 20 hp at 250 V DC; 50 hp at 600 V DC
Factory Installed Neutral
None
CAD Available
Yes

Description

Safety Switch, Contact Form 3PDT, Current Rating 100 A, Depth 6 7/8 in, Duty Heavy Duty, Environment Indoor, For Fuse Class Not Applicable, Height 30 in, Horsepower @ 240V AC 40 hp, Horsepower @ 480V AC 75 hp, Horsepower @ 600V AC 100 hp, Housing Material Steel, IP Rating IP20, Mounting Style Surface Mount, NEMA Enclosure Rating 1, Neutral Assembly Included No
