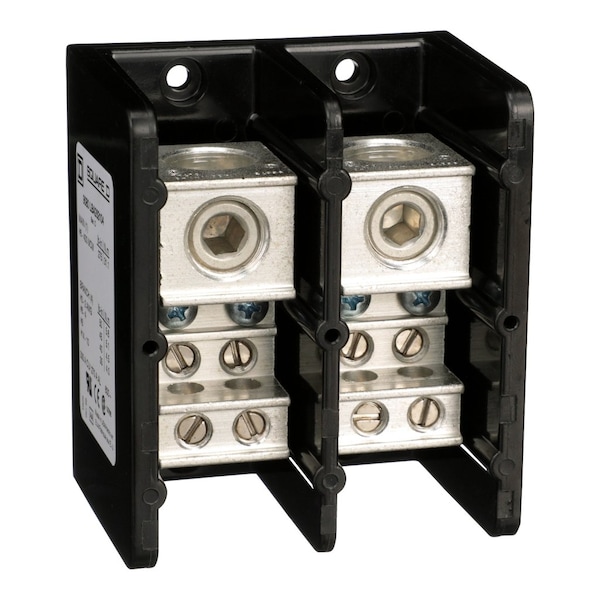

Power Distribution Block, Open, 2 Pole, 335 A Copper, 600 V AC/DC, Surface Mount
Mfr # 9080LBA263104
Zoro # G709015784
product price:Â
$
112.99
/ea
Free Shipping & Returns
Key Features
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
335 A
Maximum Current - Aluminum Conductor
270 A
Maximum Voltage
600 V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9080LBA263104
- Zoro #
- G709015784
- UPC #
- 785901156994
- Country of Origin
- United States
- Item
- Power Distribution Block
- Power Distribution Block Design
- Open
- For Conductor Material
- Aluminum, Copper
- Maximum Current - Copper Conductor
- 335 A
- Maximum Current - Aluminum Conductor
- 270 A
- Maximum Voltage
- 600 V AC/DC
- Number of Poles
- 2
- Line Connections/Pole
- 1
- Load Connections/Pole
- 4
- Line Side Connection Type
- Lug
- Load Side Connection Type
- Lug
- Terminal Material
- Aluminum
- Housing Material
- Phenolic
- Maximum Operating Temperature
- 302 Degrees F
- Mounting Type
- Surface Mount
- Standards
- CSA file 70361 class 6228 01, UL recognized E60616 CCN XCFR2, CE
- Housing Color
- Black
- Number of Cables
- load 1 , AWG 14...AWG 2, copper or aluminium, line 4 , AWG 6...400 kcmil, copper or aluminium
- [Ics] Rated Service Breaking Capacity
- 100 kA UL 508 A
- Range of Product
- 9080LB
- Short-Circuit Current
- 65 kA
- Product Compatibility
- 9080LB32
- Ambient Air Temperature For Operation
- -40-302°F
Description
Power Distribution Block 600V 335A Tlb, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 400 kcmil, Load Connections/Pole 4, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 335 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 2, Overall Depth 2.61 in, Overall Length 3.38 in, Overall Width 1.94 in
