  15. Push Buttn Cntrol Station, 2NO, Open/Close

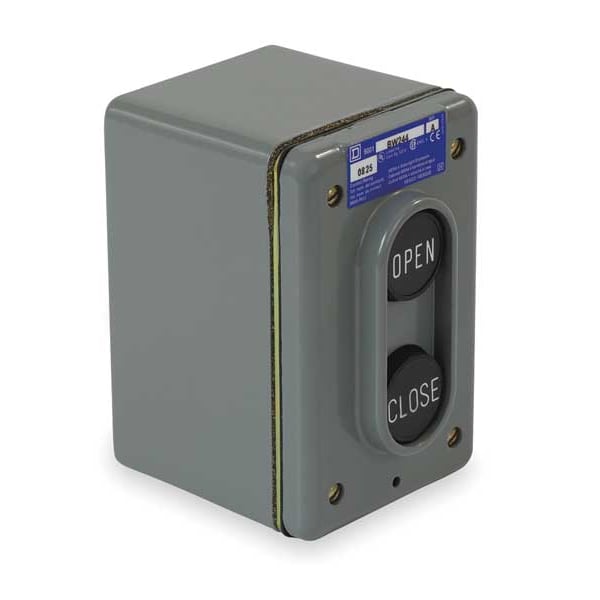

Square D Push Buttn Cntrol Station, 2NO, Open/Close 9001BW244 - main

Push Buttn Cntrol Station, 2NO, Open/Close

  • Mfr # 9001BW244

  • Zoro # G0476147

product price: $252.99
/ea
Free Shipping & Returns

Key Features

Contact Form
2NO
Number of Gangs
1
Basic Material
cast aluminium
Legend
Open/Close
Type of Operator
Push Button/Push Button
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001BW244
Zoro #
G0476147
UPC #
785901857396
Country of Origin
Mexico

Dimensions

Size
30 mm
Width
2.76 in
Height
3.6 in
Depth
4.25 in
Overall Height
4.25 in
Hub Size - Maximum
1/2 in
Overall Width
2.76 in
Overall Depth
3.6 in
Manufacturer Warranty Length
18 mo

Details

Item
Control Station
Contact Form
2NO
Number of Gangs
1
Basic Material
cast aluminium
Legend
Open/Close
Type of Operator
Push Button/Push Button
Number of Pilot Lights
0
Number of Operators
2
NEMA Rating
4
Hub Style
Dead-End
Series
9001
Standards
CSA, UL Listed
Contact Rating
5A @ 600V AC/24V DC
For Use With
indoor/outdoor
Housing Color
grey
Action
Momentary/Momentary
Hub
1/2 in to 3/4 in NPT
Mechanical Interlock
No
Enclosure Material
Zinc
Enclosure Color
Gray
Mounting
Wall
IP Rating
IP66
Green Environmental Attribute
RoHS 2011/65/EU Compliant
NEMA Contact Rating Designation
B600/P600
Number of Speeds
1
Operator Color
(2) Black
Cable Entry
1 entry for 1/2" - 14 NPT
Application
two functions
Mounting Style
Surface
Rated Operational Current
0.6 A 600 V, AC-1/DC-1; 0.75 A 480 V, AC; 1.5 A 240 V, AC; 3.75 A 120 V, AC
Product Certifications
CSA; UL Listed
NEMA Degree Of Protection
NEMA 1; NEMA 4
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Device Mounting
Surface
Environmental Characteristic
Waterproof; Dustproof
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Control Station Composition
1 flush push-button, black, white OPEN; 1 flush push-button, black, white CLOSE
Mechanical Durability
5000000 cycles
Product Or Component Type
Complete control station
Contact Type and Composition
1 NO + 1 NO
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated
Product Type
Control Station
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Includes Mechanical Interlock
No Mechanical Interlock Included.
Operator Configuration
(2) Flush Push Buttons
AC Contact Rating
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V
NEMA Enclosure Rating
1, 13, 4
Operating Temperature - Maximum
158 Degrees F

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Open/Close, Type of Operator Push Button/Push Button, Action Momentary/Momentary, Operator Color (2) Black, Contact Form 2NO, Mechanical Interlock No, NEMA Rating 4, Contact Rating 5A @ 600V AC/24V DC, NEMA Contact Rating Designation B600/P600, IP Rating IP66, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 3.6 in, Width 2.76 in, Depth 4.25 in, Enclosure Material Zinc, Enclosure Color Gray
