  11. Surge Protection Device, Surgelogic, HL, 160kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2

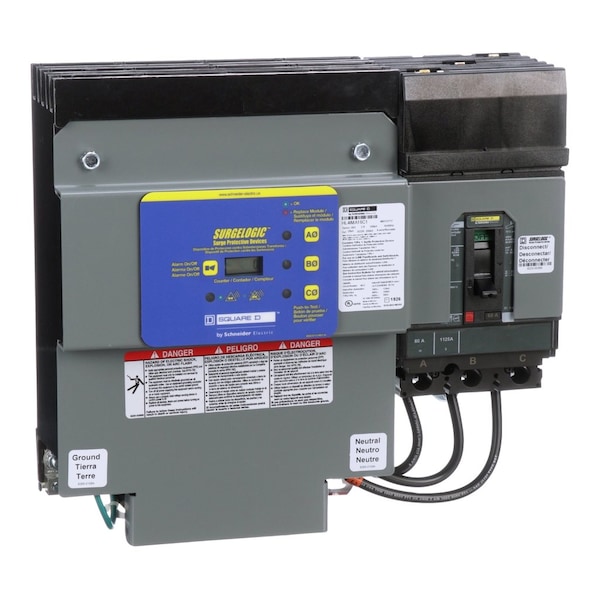

Square D Surge Protection Device, Surgelogic, HL, 160kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2 HL4IMA16C - main

Surge Protection Device, Surgelogic, HL, 160kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2

  • Mfr # HL4IMA16C

  • Zoro # G6534306

product price: $9,129.58
/ea
Free Shipping & Returns

Key Features

Mounting Style
For I-Line Panelboards
Phase
3
Voltage
277/480V AC
Number of Poles
3
Voltage Protection Rating
1200V (L-G,N-G), 1500V (L-N), 2000V (L-L)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HL4IMA16C
Zoro #
G6534306
UPC #
785901865179
Country of Origin
Mexico

Dimensions

Length
12.16 in
Depth
5.59 in
Width
13.46 in
Length (Straight Wireway)
12.16 in
Cable Length
483 mm

Details

Item
Surge Protection Device
Mounting Style
For I-Line Panelboards
Phase
3
Voltage
277/480V AC
Number of Poles
3
Voltage Protection Rating
1200V (L-G,N-G), 1500V (L-N), 2000V (L-L)
Filtering / Nonfiltering
Filtering
Number of Wires
4 Wires
Modes of Protection
L-G, L-L, L-N, N-G
Max. Surge Current per Mode
160 kA
Max. Surge Current Per Phase
160kA
Max. Surge Current per Phase
160 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Filtering
Yes
Max. Continuing Operating Voltage
320V AC
Enclosure NEMA Rating
NEMA 2
Enclosure Material
Metal
Wire Gauge
6 AWG
Includes
Dry Contacts
Modular / Nonmodular
Modular
Standards
CSA C22.2 No 5-09, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 489:ed. 11, UL 1449:ed. 3, UL 1283:ed. 5, Type 2
System Connection
Parallel
Color
Gray
UL SPD Type
Type 2
Amps
60 A
Basic Material
Metallic
Status Indicator
Audible Alarm, LED Light
Includes Surge Counter
Yes
Mounting Support
panel mounting
Line Rated Current
60 A
Breaking Capacity
50 kA
Breaking Capacity Code
HL
Device Short Name
IMA
Connections - Terminals
I-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m
Surge Current
160 kA
Trip Unit Technology
thermal-magnetic
Provided Equipment
alarm enable/disable switch || surge counter || circuit-breaker
[Uc] Maximum Continuous Operating Voltage
150 V
Local Signalling
status LED green per phase normal operation || status LED red per phase fault

Description

SurgelogicTM Type IMA systems are internal surge protection devices with a focus on service entrance and critical branch panel surge suppresion. This unit provides surge suppression from transient service entrance panels to point-of-use equipment. Being modular in design, this unit is able to achieve superior surge suppression on the load side including at the branch panel. This SPD takes up 13.5 inches mounting height in I-Line panelboard. With a surge current rating of 160,000 Amps and enhanced EMI/RFI filtering and 100kAIC SCCR. Designed for 480Y/277VAC three phase systems. This product is UL and CSA certified.
