- Item

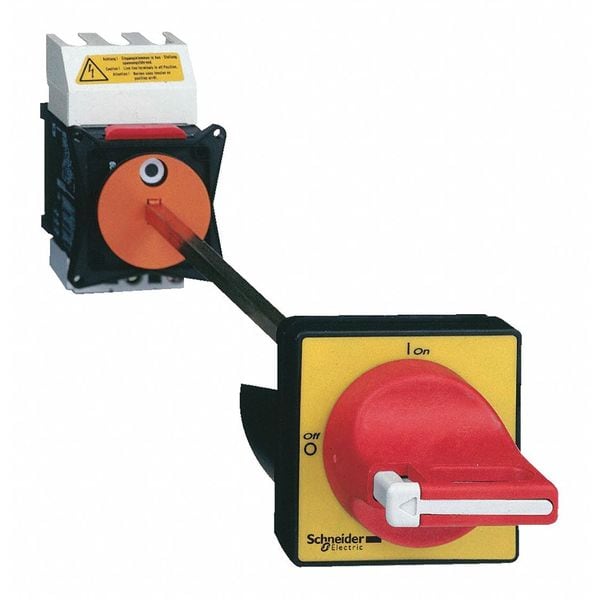

- Switch Kit
- Standards
- IEC 60947-3
- Compatibility Code
- main switch disconnector
- Control Type
- rotary handle
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Rotary Handle Mounting Style
- extended
- Suitability For Isolation
- yes
- Mounting Support
- handle door || switch symmetrical rail || switch plate
- Electrical Durability
- 30000 cycles AC-21 || 30000 cycles DC-1 to 5
- Fixing Mode
- by 4 screws handle || by clips switch || by screws switch
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- Device Short Name
- VCCF
- Product Certifications
- UL || GL || CSA || CCC || UKCA
- Rated Operational Power In W
- 18.5 kW 690 V AC-3) || 15 kW 230 to 240 V AC-3) || 22 kW 400 to 415 V AC-3) || 30 kW 500 V AC-3) || 30 kW 690 V AC-23A) || 37 kW 500 V AC-23A) || 18.5 kW 230 to 240 V AC-23A) || 30 kW 400 to 415 V AC-23A)
- [Ie] Rated Operational Current
- 57 A AC-23 Ue: 400 V
- Mechanical Durability
- 30000 cycles
- Device Composition
- handle || switch || shaft extension
- Poles Description
- 3P
- [Ith] Conventional Free Air Thermal Current
- 80 A
- Making Capacity
- 800 A 400 V AC-21A || 800 A 400 V AC-22A || 800 A 400 V AC-23A
- [Icw] Rated Short-Time Withstand Current
- 960 A 400 V 1 s
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP65
- Connections - Terminals
- power circuit screw clamp terminals 25-25 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - with cable end
- Breaking Capacity
- 640 A 400 V AC-21A) || 640 A 400 V AC-22A) || 640 A 400 V AC-23A)
- Fire Resistance
- 960°C IEC 60695-2-1
- Range
- TeSys
- Handle Front Plate Colour
- yellow
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 80 A aM || 10 kA 400 V 80 A gG
- Network Type
- DC || AC
- Intermittent Duty Class
- 30
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Handle Colour
- red
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Contacts Type And Composition
- 3 NO
- Marking
- 0 - 1
- Performance Level
- high performance
- [Ithe] Conventional Enclosed Thermal Current
- 63 A
- Ambient Air Temperature For Operation
- -20-50°C
- Mechanical Robustness
- vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Protective Treatment
- TC
- Product Or Component Type
- emergency stop switch disconnector
- Product Name
- TeSys VARIO
