  11. Ballast Dsconnct, 18AWG, 2 Ports, 1.28", PK2
Shop All Wire Disconnects
Sta-Kon

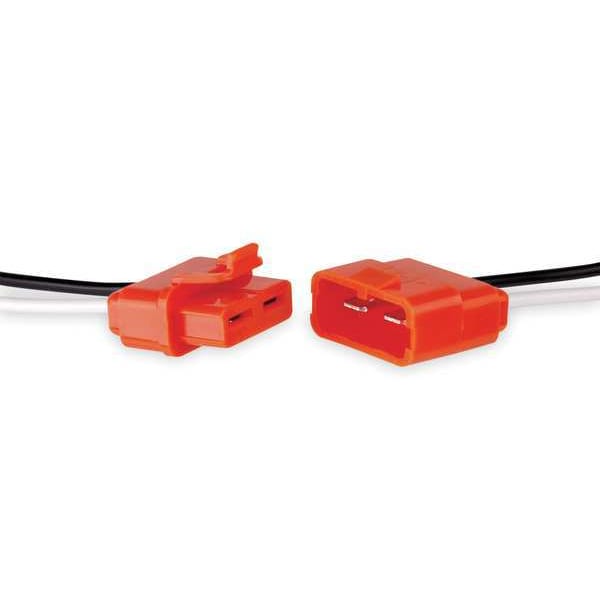

Ballast Dsconnct, 18AWG, 2 Ports, 1.28", PK2

product price: $4.49
/pk 2, $2.25/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wire Size 18 AWG
  • Material Polycarbonate
  • Color Orange
  • Insulation Color Orange
  • Connection Type Twist On
See all product information

Product Information

Dimensions

Wire Size 18 AWG
Overall Length 1.28 in

Details

Item Ballast Disconnect
Material Polycarbonate
Color Orange
Insulation Color Orange
Connection Type Twist On
Insulation Type Polycarbonate
Number of Ports 2
Max. Temp. 221 Degrees F
Max. Voltage 600 V
Male/Female 2 Male/2 Female
Features 6 in Wire Leads
Connection Material Tin-Plated Brass
Standards CEC Part I Rule 30-308(4), CSA, NEC 410.73 (G), UL
Application New Installation, Retrofit
Special Features Finger-Safe Line Side Prevents Installer From Touching Hot Contacts, Fits Through 1/2 in Knockout, Fool-Proof Design
For Conductor Material Copper
Number of Pieces 20
Contact Material Tin-Plated Brass
Includes (1) Installation Instructions, (2) Female Load Half, (2) Male Line Half
Contact Type Plug to Socket, Socket to Plug
Housing Material Polycarbonate
Compatible with Series LD2
Maximum Voltage 600 V
Insulation Material Polycarbonate
Maximum Current 4 A
UL 94 Flammability Rating V-2
Maximum Operating Temperature 105 Degrees F
Gender 2 Male/2 Female
Product Name electrical con, splice, disconnect"
Product Type Disconnects
Special Functions Oversized electrical contacts improve conductivity and reduce temperature rise. Integral wire leads ease installation. Fool-proof design enables mating halves to be installed in only one way. Finger-safe line side prevents installer from touching hot contacts. Rounded compact design small enough to be used in compact applications - fits through 1/2 knockout."
Standard UL E307134
Nominal voltage 150 V

Description

Ballast Disconnect, Color Orange, Connection Type Twist On, Contact Type Plug to Socket, Socket to Plug, For Conductor Material Copper, Gender 2 Male/2 Female, Housing Material Polycarbonate, Insulation Material Polycarbonate, Maximum Current 4 A, Maximum Operating Temperature 105 Degrees F, Maximum Voltage 600 V, Standards CEC Part I Rule 30-308(4), CSA, NEC 410.73 (G), UL, Application New Installation, Retrofit, Compatible with Series LD2, Contact Material Tin-Plated Brass
