  11. Female Disconnect, Red, 22-18AWG, PK100

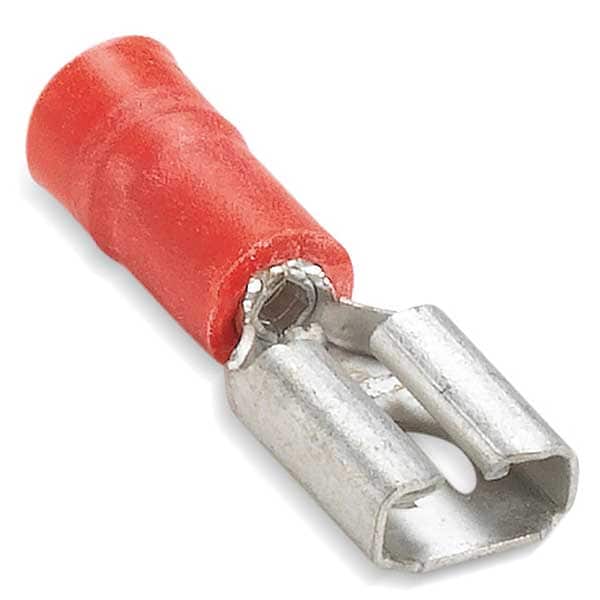

Sta-Kon Female Disconnect, Red, 22-18AWG, PK100 18RA-250F - main

Female Disconnect, Red, 22-18AWG, PK100

  • Mfr # 18RA-250F

  • Zoro # G0526145

product price: $49.59
/pk 100, $0.50/ea

Key Features

Insulation
Partial
Material
Brass
Insulation Color
Yellow
Color
Red
Insulation Type
Vinyl
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
18RA-250F
Zoro #
G0526145
UPC #
-
Country of Origin
United States

Dimensions

Tab Size
0.032 in x 0.250 in
Overall Length
0.96 in
Barrel Inside Dia.
0.06 in
Tab Width
0.25 in
Tab Thickness
0.032 in
Barrel Size
Long
Minimum Wire Size
22 AWG
Barrel Inside Diameter
0.06 in
Maximum Wire Size
18 AWG
Stock Thickness
0.03

Details

Item
Female Disconnect
Insulation
Partial
Material
Brass
Insulation Color
Yellow
Color
Red
Insulation Type
Vinyl
Wire Range
22 to 18 AWG
Connection Type
Crimp
Seam
Brazed
Max. Temp.
221 Degrees F
Max. Voltage
600 V
Connection Material
Brass
Standards
UL E66716
Features
Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA257
Barrel Style
Funnel Entry
RoHS Compliant
No
UL 94 Flammability Rating
Not Rated
Contact Material
Copper
Termination Style
Crimp
Special Features
Brazed Seam Serrated Barrel Provides Maximum Tensile Strength, Unique Construction of the Female Disconnect offers Long-Term Dependability
Maximum Operating Temperature
221 Degrees F
Contact Finish
Tin
Insulation Coverage
Partial Coverage
Insulation Material
Vinyl
Maximum Voltage
600 V
Terminal Type
Socket
Seam Style
Brazed
A (inches)
0.96
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Terminal Series
RA
Maximum Insulation (inches)
0.15
Recommended Tool
ERG4001
Disconnect Type
Female - 250 Series
Application Tools
WT145C, WT2000, WT112M, ERG4001, ERG4003
Voltage Rating
600V
B (inches)
0.29
Temperature Rating
105°C
Material insulation
Polyvinyl chloride (PVC)
Type
Vinyl Insulated Female Disconnect
AWG-range
22-18

Description

Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716
