  11. Female Flag Disconnect, Red, PK50

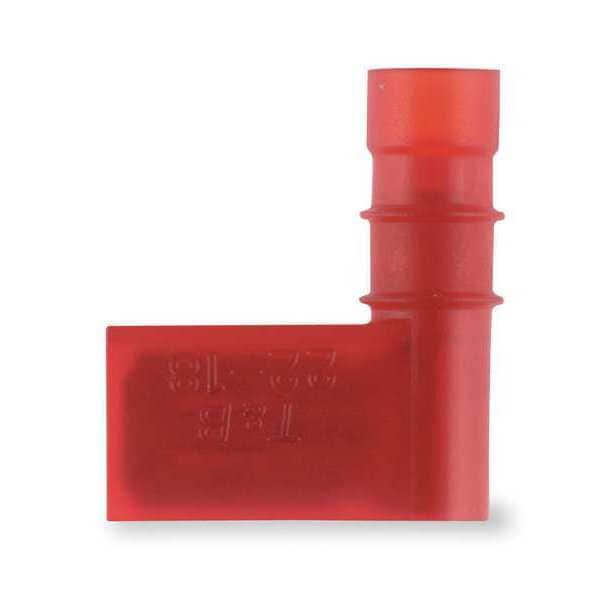

Sta-Kon Female Flag Disconnect, Red, PK50 RA18-250A - main

Female Flag Disconnect, Red, PK50

  • Mfr # RA18-250A

  • Zoro # G1970534

product price: $59.79
/pk 50, $1.20/ea

Key Features

Insulation
Partial
Material
Brass
Insulation Color
Red
Color
Red
Connection Type
Crimp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RA18-250A
Zoro #
G1970534
UPC #
786210894423
Country of Origin
United States

Dimensions

Tab Size
0.032 in x 0.250 in
Overall Length
0.8 in
Barrel Inside Dia.
0.06 in
Barrel Inside Diameter
0.06 in
Minimum Wire Size
22 AWG
Tab Width
0.25 in
Tab Thickness
0.032 in
Maximum Wire Size
18 AWG
Barrel Size
Long

Details

Item
Female Flag Disconnect
Insulation
Partial
Material
Brass
Insulation Color
Red
Color
Red
Connection Type
Crimp
Insulation Type
Nylon
Wire Range
22 to 18 AWG
Seam
Overlapped
Max. Temp.
221 Degrees F
Max. Voltage
600 V
Standards
UL E66716
Connection Material
Tin-Plated Copper
Features
Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA2577F
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Contact Material
Brass
Seam Style
Brazed
Insulation Material
Nylon
Connection Orientation
90 Degrees Angled
Terminal Type
Socket
Insulation Coverage
Partial Coverage
Barrel Style
Funnel Entry
Special Features
Brazed Seam Serrated Barrel Provides Maximum Tensile Strength, Unique Construction of the Female Disconnect offers Long-Term Dependability
Termination Style
Crimp
Disconnect Style
90 Degree
UL 94 Flammability Rating
Not Rated
RoHS Compliant
No
Contact Finish
Tin
Standard
UL E66716
Finish
Tin Plated
Type
Nylon Insulated Open Top 90 Degree Flag Female Disconnect
AWG-range
22-18
Material insulation
PA

Description

Female Flag Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style 90 Degree, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716
