  11. Male Disconnect, Blue, 16-14AWG, PK100
Shop All Wire Disconnects
Sta-Kon

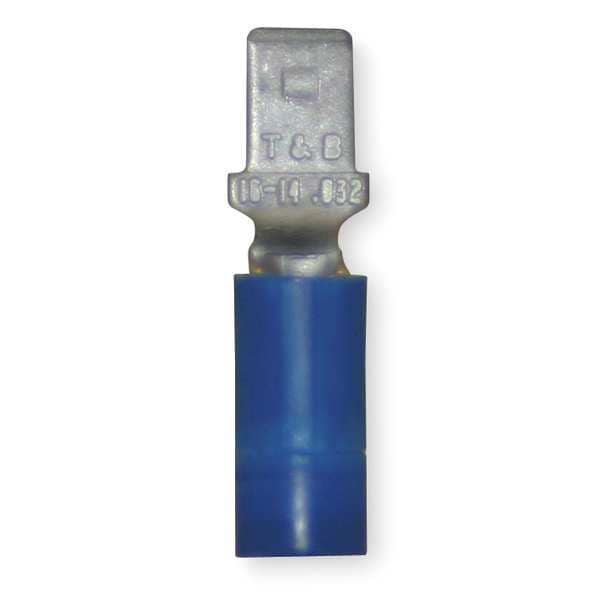

Male Disconnect, Blue, 16-14AWG, PK100

product price: $81.75
/pk 100, $0.82/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style Male - 187 Series
  • Insulation Partial
  • Material Brass
  • Insulation Color Blue
  • Color Blue
See all product information

Product Information

Dimensions

Tab Size 0.032 in x 0.187 in
Overall Length 0.87 in
Barrel Inside Dia. 0.086 in
Maximum Wire Size 14 AWG
For Wire Size 14 AWG, 16 AWG
Barrel Inside Diameter 0.086 in
Barrel Size Long
Tab Width 0.187 in
Minimum Wire Size 16 AWG

Details

Item Male Disconnect
Style Male - 187 Series
Insulation Partial
Material Brass
Insulation Color Blue
Color Blue
Connection Type Crimp
Insulation Type Vinyl
Wire Range 16 to 14 AWG
Seam Overlapped
Max. Temp. 221 Degrees F
Max. Voltage 600 V
Standards UL E66716
Connection Material Tin-Plated Copper
Maximum Operating Temperature 221 Degrees F
Termination Style Crimp
Insulation Coverage Partial Coverage
UL 94 Flammability Rating Not Rated
Barrel Style Funnel Entry
Seam Style Overlapped
Terminal Types Male Tab
Maximum Voltage 600 V
Terminal Type Tab
Contact Material Copper
Tab Thickness 0.032 in
Disconnect Style Tab
Insulation Material Vinyl
RoHS Compliant Yes
Contact Finish Tin
Temperature Rating 105°C
A (inches) 0.87
Recommended Tool ERG4001
Flammability Rating UL 94 V-0
Stock Thickness 0.03
Terminal Series RBD
Maximum Insulation (inches) 0.17
Voltage Rating 600V
Finish Electro Tin-Plated
Standard UL E66716, CSA 4503, CSA 7222
Material insulation Polyvinyl chloride (PVC)
AWG-range 16-14
Type Vinyl Insulated Male Disconnect

Description

Male Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.187 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant Yes, Seam Style Overlapped, Standards UL E66716
