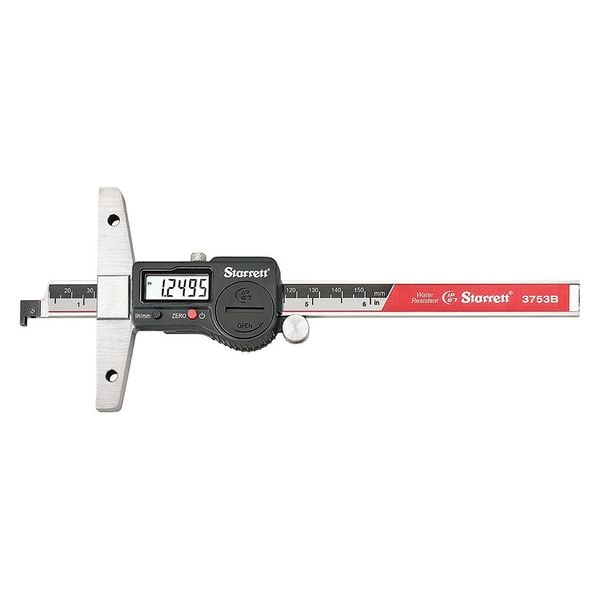

Starrett Electronic Depth Gage, 0 to 6" Range 3753B-6/150 - main

Electronic Depth Gage, 0 to 6" Range

  • Mfr # 3753B-6/150

  • Zoro # G1588260

product price: $628.99
/ea
Free Shipping & Returns

Key Features

SPC Output
Yes
Base Style
Flat
Resolution
0.0005 in/0.01 mm
Base Length
3 15/16 in
Number of Measuring Rods
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3753B-6/150
Zoro #
G1588260
UPC #
049659126907
Country of Origin
China

Dimensions

Base Length
3 15/16 in
Depth Gauge Type
Blade-Style
Dimension Type
Inch/Metric
Blade Width
0.50 in
Battery Size
CR2032

Details

Item
Blade-Style Digital Depth Gauge
SPC Output
Yes
Base Style
Flat
Range
0 in to 6 in, 0 mm to 150 mm
Resolution
0.0005 in/0.01 mm
Number of Measuring Rods
0
Long Form Calibration Certificate
No
Rotating Spindle (Yes/No)
No
Lock Nut Type
Screw
Features
Automatic Shut-Off After 30 min, Fine Adjustment Thumb Roll for Precision Measurements, Hardened Stainless Steel Body and Slide for Long Life, Lock to Hold the Slide In Position, Removable Hook Has The Screw Permanently Attached to Prevent Loss, Zero At Any Position
Movement of Screw
1 in
Includes
Case
Number of Gauges
0
Minimum Measurement - mm
0 mm
Minimum Measurement - Inch
0 in
Accuracy
+/-0.001 in
Actuation Style
Slide
Standards
California Proposition 65
Coolant Resistant
Yes
Maximum Measurement - Inch
6 in
Case Included
Yes
IP Rating
IP67
Functions
Inch/mm Conversion, Manual On/Off, RS232 Data Output Port, Zero at Any Position
Operation Type
Digital
Compatible Data Output Cable
Mfr. No. 798SCKB
Includes Battery
Yes
Blade Material
Stainless Steel
Maximum Measurement - mm
150 mm
Display Type
LCD
Blade Tip Shape
Flat, Hook
Compatible Wireless Transmitter
Starrett DataSure(R) Wireless Data Collection System
Contact Point Shape
Flat
Case Type
Plastic Case
Data Output Type
Cable
Included Certification
Not Included
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
6 in
Inches Measured - Minimum
0 in
Millimeters Measured - Maximum
150 mm

Description

Electronic Depth Gage, SPC Output Yes, Base Style Flat, Range 0 to 6 In., Resolution 0.0005 In., Base Length 3-15/16 In., Number of Measuring Rods 0, Long Form Calibration Certificate No, IP Rating No Rated, Number of Gauges 0, Movement of Screw 1 In., Rotating Spindle (Yes/No) No, Lock Nut Type Screw
