Compare

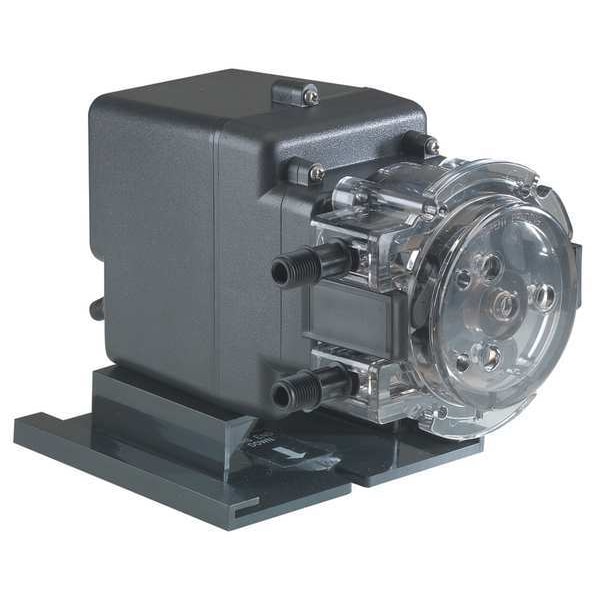

Peristaltic Fixed Rate 45MPHP10 10GPD 100Psi 1/4"W

Mfr # 45MFH2A1SUG1
Zoro # G1363214

$395.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Body Material Polycarbonate
Reproducibility +/-2.0%
Self-Priming Yes
Voltage - Pumps 115V AC
cc/Min. 26.32 cc/min

See all product information

Brand Stenner
MFR # 45MFH2A1SUG1
Zoro # G1363214
Country of Origin United States
Category Peristaltic Pumps

Dimensions

Height	6 in
Length	8 in
Cord Length	6 ft
Width	5 5/16 in
Overall Length	5.3 in
Overall Width	8 in
Overall Height	6 in
Intake Connection Size	1/4 in
Discharge Connection Size	1/4 in

Details

Item - Chemical Metering Pumps	Chemical Metering Pump
Body Material	Polycarbonate
Reproducibility	+/-2.0%
Self-Priming	Yes
Voltage - Pumps	115V AC
cc/Min.	26.32 cc/min
Flow Rate Output Control	Fixed
Max. Flow (GPD) - Pumps	10.00 gpd
Min. Flow Rate	10 gpd
Hz	60
Reproducibility - Pumps	+/-2.0%
Includes	20 ft Roll of Suction/Discharge Tubing, Pump Tube, Injection Check Valve 100 psi (6.9 bar) Maximum or 1 Injection Fitting 25 psi (1.7 bar) max, Mounting Bracket, Weighted Suction Line Strainer, (2) Additional Latches, (3) Connecting Nuts, (3) 1/4 in Ferrules
Max. Pressure - Pumps	100 psi
Chemical Metering Pump Type	Peristaltic
HP - Pumps	1/30 hp
Motor RPM	26 RPM
Standards	cCSAus, CE Certified, cUSA, ETL Intertek Conforms to ANSI/NSF Std.50, UL Listed
Max. Viscosity - Pumps	1,500 cps
Phase - Pumps	1
Tubing Material	Santoprene
Suction Lift	25 ft
Features	Fixed Rate Single Head, Nonclogging Design, Valveless
Item	Chemical Metering Pump
Tubing Material - Peristaltic Pumps	Santoprene
Max. Flow Rate	10 gpd
Number of Feeds	Single Head
Seals and O-Rings - Pumps	Santoprene
Head and Fitting Material - Pumps	Polycarbonate/Polypropylene/PVC
Max. Flow (gpd) - Pumps	10.00 gpd
Roller Material	Polyethylene
Pressure (Maximum)	100 psi
Viscosity (Maximum)	1,500 cps
Chemical Compatibility	Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water
Control Programs	Manual Control
Motor Speed (Maximum)	26 RPM
Discharge Connection Type	Tube
Duty Cycle	Continuous
Motor Type	Shaded Pole
Head Material	Polyethylene, Polypropylene
Frequency	60 Hz
Housing Material	Polycarbonate
Electrical Connection Type	Plug-In
Media Temperature (Maximum)	125 Degrees F
Fitting Material	Polypropylene, PVC
Seal Material	Santoprene
Phase	Single
Priming	Self-Priming
Media Temperature (Minimum)	32 Degrees F
Horsepower (Maximum)	1/30 hp
Flow Rate (Maximum)	10 gpd
Ambient Temperature (Maximum)	125 Degrees F
Intake Connection Type	Tube
Degassing Valve Included	No
Nameplate Voltage	120V AC

Description

Chemical Metering Pump
