  9. PeristalticChemMeteringPump, 150gpd, 25psi

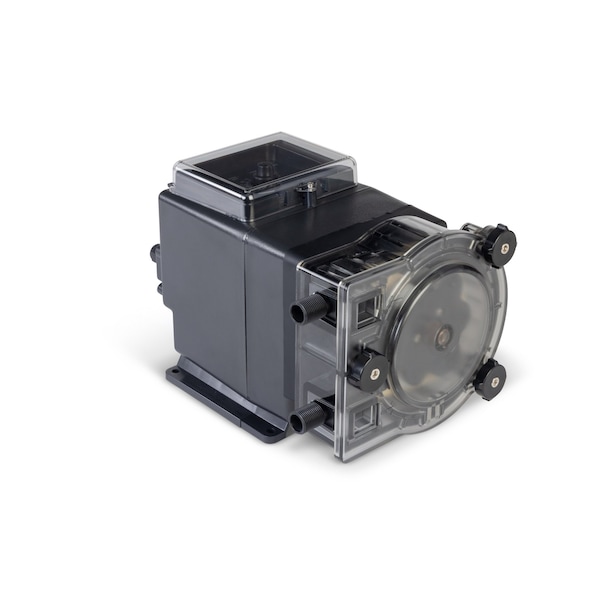

Stenner PeristalticChemMeteringPump, 150gpd, 25psi S445X - main

PeristalticChemMeteringPump, 150gpd, 25psi

  • Mfr # S445X

  • Zoro # G208595671

product price: $1,727.99
/ea
Free Shipping & Returns

Key Features

Flow Rate Output Control
Adjustable
Reproducibility
+/-2.0%
Cord Length
6 ft
Number of Feeds
1
Includes
(1) Additional Pump Tube, (1) Ball Check Valve, (1) Manual, (1) Mounting Bracket, (1) Suction/Discharge Tubing and White or UV Black, (1) Weighted Suction Line Strainer, (2) Adapters, (3) Connecting Nuts
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S445X
Zoro #
G208595671
UPC #
840034750980
Country of Origin
United States

Dimensions

Cord Length
6 ft
Overall Length
7.2 in
Manufacturers Warranty Length
2 yr
Overall Height
7 in
Overall Width
11 in
Discharge Connection Size
3/8 in
Intake Connection Size
3/8 in

Details

Flow Rate Output Control
Adjustable
Reproducibility
+/-2.0%
Number of Feeds
1
Includes
(1) Additional Pump Tube, (1) Ball Check Valve, (1) Manual, (1) Mounting Bracket, (1) Suction/Discharge Tubing and White or UV Black, (1) Weighted Suction Line Strainer, (2) Adapters, (3) Connecting Nuts
Phase
Single
Item
Peristaltic Chemical Metering Pump
Turn Down Ratio
100:1
Tubing Material
Santoprene
Standards
CE, IAPMO, INTERTEK/ETL, IP65, NEMA 4X, NSF/ANSI, NSF/ANSI 61 & 372
Control Programs
4-20 mA Input, Manual Control
Duty Cycle
Continuous
Pressure (Maximum)
25 psi
Viscosity (Maximum)
1,500 cps
Motor Speed (Maximum)
45 RPM
Housing Material
Polycarbonate
Ambient Temperature (Maximum)
104 Degrees F
Priming
Self-Priming
Frequency
60 Hz
Roller Material
Polyethylene
Flow Rate (Maximum)
150 gpd
Electrical Connection Type
Plug-In
Motor Type
DC
Motor Enclosure
Totally Enclosed
Head Material
Polycarbonate
Flow Rate (Minimum)
1.5 gpd
Discharge Connection Type
NPT
Degassing Valve Included
No
Nameplate Voltage
120V AC
Chemical Compatibility
Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water
Media Temperature (Maximum)
104 Degrees F
Horsepower (Maximum)
1/16 hp
Media Temperature (Minimum)
32 Degrees F
Intake Connection Type
NPT
Fitting Material
Polypropylene, PVC

Description

Peristaltic Chemical Metering Pump, Control Programs 4-20 mA Input, Manual Control, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 150 gpd, Flow Rate (Minimum) 1.5 gpd, Horsepower (Maximum) 1/16 hp, Intake Connection Size 3/8 in, Intake Connection Type NPT, Media Temperature (Maximum) 104 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC, Number of Feeds 1, Pressure (Maximum) 25 psi, Reproducibility +/-2.0 Percent

Restrictions

WARNING: This product can expose you to chemicals including Soots, tars, and mineral oils, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
