Shop STENNER

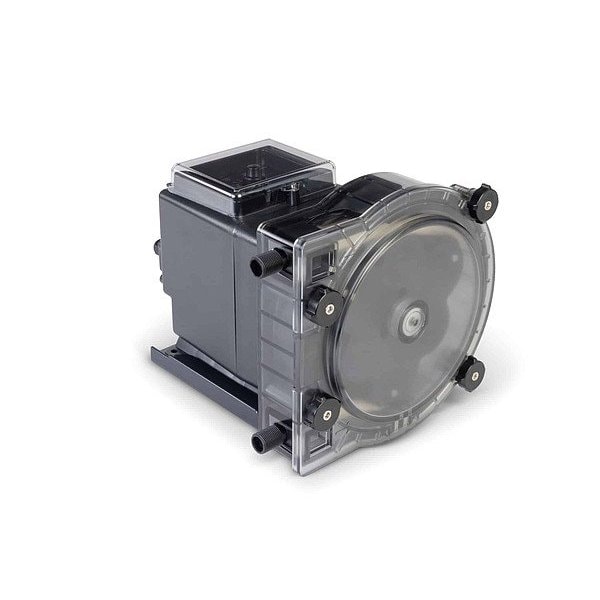

PeristalticChemMeterPump, 315gpd, 100psi

  • Mfr # S545G

  • Zoro # G116557440

product price:  $1,687.99
/ea
Free Shipping & Returns

Key Features

Head Material
Polycarbonate/Santoprene
Intake Connection Size
3/8 in
Flow Rate (Maximum)
315 gpd
Discharge Connection Size
3/8 in
Frequency
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S545G
Zoro #
G116557440
UPC #
840034753677
Country of Origin
United States

Dimensions

Intake Connection Size
3/8 in
Discharge Connection Size
3/8 in
Overall Height
8.1 in
Overall Length
8.8 in
Cord Length
6 ft
Manufacturers Warranty Length
2 yr
Overall Width
11 in
Wire Rope Length
8.8 in

Details

Item
Peristaltic Chemical Metering Pump
Head Material
Polycarbonate/Santoprene
Flow Rate (Maximum)
315 gpd
Frequency
60 Hz
Horsepower (Maximum)
1/16 hp
Flow Rate (Minimum)
3.2 gpd
Ambient Temperature (Maximum)
104 Degrees F
Control Programs
4-20 mA Input
Intake Connection Type
NPT
Pressure (Maximum)
100 psi
Pump Technology
Peristaltic
Seal Type
O-Ring
Motor Mounting Type
Horizontal, Vertical
Nameplate Voltage
120V AC
Phase
Single
Seal Material
Santoprene
Roller Material
Polycarbonate
Motor Enclosure Design
Totally Enclosed
Reproducibility
+/-2.0%
Includes
20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Media Temperature (Minimum)
32 Degrees F
Turn Down Ratio
100:1
Electrical Connection Type
Plug-In
Tubing Material
Santoprene
Media Temperature (Maximum)
104 Degrees F
Number of Feeds
1
Standards
CE, cULus, NSF/ANSI 50, NSF/ANSI 372, NSF/ANSI 61
Housing Material
Polycarbonate
Priming
Self-Priming
Duty Cycle
Continuous
Viscosity (Maximum)
1,500 cps
Discharge Connection Type
NPT
Fitting Material
Polypropylene/PVC
Degassing Valve Included
No
Motor Thermal Protection
Auto
Flow Rate Output Control
Adjustable

Description

Peristaltic Chemical Metering Pump, Control Programs 4-20 mA Input, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 315 gpd, Flow Rate (Minimum) 3.2 gpd, Horsepower (Maximum) 1/16 hp, Intake Connection Size 3/8 in, Intake Connection Type NPT, Media Temperature (Maximum) 104 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC, Number of Feeds 1, Pressure (Maximum) 100 psi, Reproducibility +/-2.0 Percent, Tubing Material Santoprene
