Shop STENNER

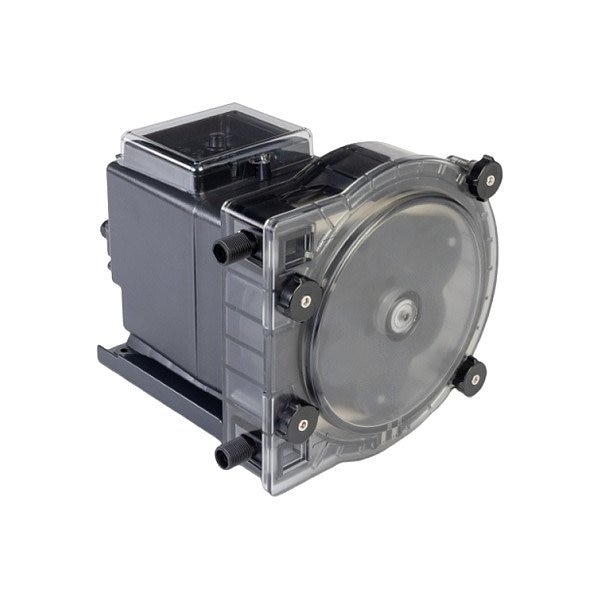

PeristalticChemMeterPump, 315gpd, 100psi

  • Mfr # S545G

  • Zoro # G215573549

product price:  $1,844.99
/ea
Free Shipping & Returns

Key Features

Flow Rate Output Control
Adjustable
Reproducibility
+/-2.0%
Phase
Single
Number of Feeds
1
Tubing Material
Santoprene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S545G
Zoro #
G215573549
UPC #
840034753455
Country of Origin
United States

Dimensions

Cord Length
6 ft
Manufacturers Warranty Length
2 yr
Overall Length
11 in
Overall Width
8.8 in
Intake Connection Size
3/8 in
Discharge Connection Size
3/8 in
Overall Height
8.1 in

Details

Flow Rate Output Control
Adjustable
Reproducibility
+/-2.0%
Phase
Single
Number of Feeds
1
Item
Peristaltic Chemical Metering Pump
Tubing Material
Santoprene
Includes
20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Standards
CE, cULus, ETL, IAPMO
Turn Down Ratio
100:1
Degassing Valve Included
No
Nameplate Voltage
120V AC
Viscosity (Maximum)
1,500 cps
Media Temperature (Maximum)
104 Degrees F
Seal Material
Santoprene
Duty Cycle
Continuous
Media Temperature (Minimum)
32 Degrees F
Flow Rate (Minimum)
15.8 gpd
Ambient Temperature (Maximum)
104 Degrees F
Horsepower (Maximum)
1/16 hp
Fitting Material
Polypropylene/PVC
Housing Material
Polycarbonate
Head Material
Polycarbonate/Santoprene
Seal Type
O-Ring
Intake Connection Type
NPT
Discharge Connection Type
NPT
Roller Material
Polycarbonate
Motor Mounting Type
Horizontal, Vertical
Chemical Compatibility
Flow Rate (Maximum)
315 gpd
Control Programs
4-20 mA Input, Manual Control
Pressure (Maximum)
100 psi
Electrical Connection Type
Plug-In
Motor Type
Brushless DC
Priming
Self-Priming
Motor Enclosure Design
Totally Enclosed
Pump Technology
Peristaltic
Frequency
60 Hz
Motor Thermal Protection
Auto

Description

Peristaltic Chemical Metering Pump, Control Programs 4-20 mA Input, Manual Control, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 315 gpd, Flow Rate (Minimum) 15.8 gpd, Horsepower (Maximum) 1/16 hp, Intake Connection Size 3/8 in, Intake Connection Type NPT, Media Temperature (Maximum) 104 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC, Number of Feeds 1, Pressure (Maximum) 100 psi, Reproducibility +/-2.0 Percent

Restrictions

This item has been restricted from sale in the following states: CA
