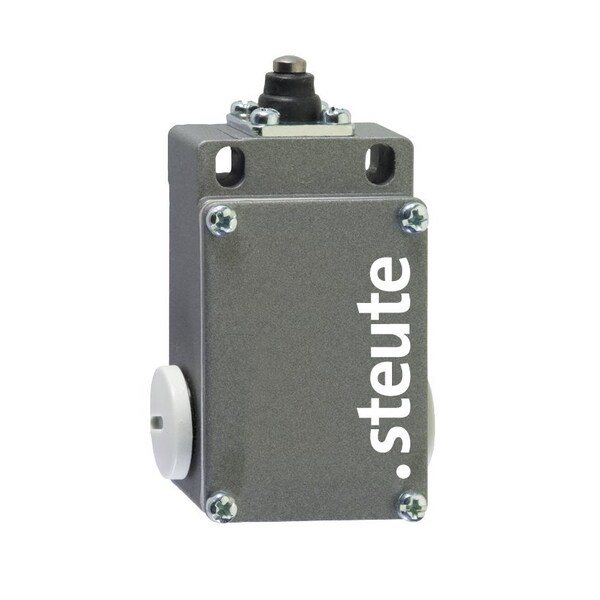

EM 41 W 1O/1S - Heavy Duty Limit Switch, 1NC / 1NO contacts, water tight collar & plunger actuator
Mfr # 1046376
Zoro # G223330387
product price: $82.99
/ea
Free Shipping & Returns
Key Features
Mechanical Life
> 1 million operations
Voltage Rating
400 VAC
Height
65 mm
Switching Elements
1 NC/1 NO contact, type Zb
IP Rating
IP65 (IEC/EN 60529)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
1046376
Zoro #
G223330387
UPC #
-
Country of Origin
Germany
Dimensions
Height
65 mm
Depth
30 mm
Width
50 mm
Details
Item
Position Switch
Mechanical Life
> 1 million operations
Voltage Rating
400 VAC
Switching Elements
1 NC/1 NO contact, type Zb
IP Rating
IP65 (IEC/EN 60529)
Operating Temp. Range
–20 °C to +80 °C
Utilisation category
AC-15
Finish
Powder-coated
Standards
EN 60947-5-1
Color
Black
Application
Position switch for industrial machinery
Body Material
Aluminium die-cast, powder-coated
Short Circuit Protection
6 A gG/gN fuse
Description
The EM 41 W 1O/1S is a compact metal enclosure limit switch designed for general industrial position sensing tasks. It features a robust aluminum housing with a top mounted plunger actuator and provides IP67 protection for use in demanding environments. The switch includes a slow action contact block with one normally closed and one normally open contact (1 NC / 1 NO). Its compact footprint and threaded conduit entry support straightforward installation in machinery, conveyors, and automation equipment requiring reliable mechanical position feedback. The plunger actuator is spring loaded for repeatable operation, and the metal housing provides long service life in applications exposed to vibration or mechanical impact.
